Product Summary

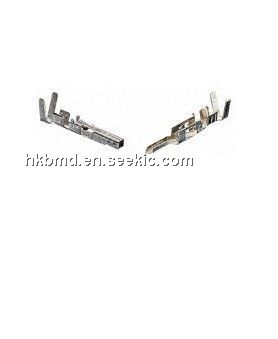

Mini-Fit Junior crimp contacts
HCS contact: use the same case, to provide an additional 3A circuit.
Note
Size 16 contact receiving 6-20awg
Molex Minifit Jr? Series
Molex Minifit Jr.? Series
Molex Minifit Jr? Series is a series of single and double row, high current, high density of wire to wire (suspended or through panel) and wire on the circuit board connector, suitable for power supply and signal applications. HCS contact with the same specifications enclosures, but provide a higher power.
Molex Mini-Fit Jr. series are: 4.2mm pitch, completely isolated terminal, positive case locking, low meshing force and polarized shell. Mini-Fit Jr. series products approved by UL, CSA certification, and by the TUV license, all components are lead-free and comply with RoHS standards.
Nylon 6/6 94V-2 shell,
Terminal tin brass
Rated voltage of 600V (r.m.s.)
Standard contact HCS contacts
Rated current of 2 9A 12A
4, 6 8A 11A
8, 10 7A 10A
12 and more 9A
The maximum 10m ohm contact resistance
Insulation resistance value of 1000M.
The dielectric strength of 1500V A.C.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 39-00-0038 |
Molex |
Headers & Wire Housings SOCKET 18-24AWG REEL |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
39-00-0021 |
Molex |
Headers & Wire Housings SPOX CRIMP TERMINAL 5000 |
Data Sheet |
|
|
||||||||||||
|
39-00-0022 |
Molex |
Headers & Wire Housings SOCKET 18-24AWG BULK |
Data Sheet |
|
|
||||||||||||
 |
39-00-0023 |
Molex |
Headers & Wire Housings 2.5MM TERMINAL REEL |
Data Sheet |
Negotiable |
|
||||||||||||
 |
39-00-0029 |
Molex |
Headers & Wire Housings MALE CRIMP TERM 24-28 AWG |
Data Sheet |
Negotiable |
|
||||||||||||
|
39-00-0030 |
Molex |
Headers & Wire Housings 2.0MM BRD-IN TERM 53 M BRD-IN TERM 5378TL |
Data Sheet |
Negotiable |
|
||||||||||||
|
39-00-0031 |
Molex |
Headers & Wire Housings 2.5 CRIMP TERM BULK |
Data Sheet |
Negotiable |
|
||||||||||||
