Product Summary

Documents:
3D Model Product Specification PS-49225-001 (PDF)
Packaging Specification (PDF) RoHS Certificate of Compliance (PDF)
Drawing (PDF)
General
Product Family Memory Card Sockets
Series 49225
Button Type Push-Push
Component Type Header & Ejector (Host)
Product Name TransFlash
Type N/A
Physical
Card Detection Switch Yes
Circuits (Loaded) 8
Circuits (maximum) 8
Color - Resin Natural
Durability (mating cycles max) 7,000
Ejector Button Side Left
Entry Angle 90° Angle (Side Entry)
Keying to Mating Part Yes
Material - Metal Phosphor Bronze, Stainless Steel
Material - Resin High Temperature Thermoplastic
PCB Locator No
PCB Mounting Side Normal
PCB Retention Yes
Packaging Type Embossed Tape on Reel
Pitch - Mating Interface (in) 0.043 In
Pitch - Mating Interface (mm) 1.10 mm
Pitch - Term. Interface (in) 0.043 In
Pitch - Term. Interface (mm) 1.10 mm
Ports 1
Surface Mount Compatible (SMC) Yes
Temperature Range - Operating -25°C to +85°C
Electrical
Current - Maximum per Contact 0.5A
Shielded Yes
Voltage - Maximum 100V
Material Info
Reference - Drawing Numbers
Product Specification PS-49225-001, RPS-49225-001
Sales Drawing SD-49225-201

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
49225-0821
49225-0821
Molex
Memory Card Connectors T FLASH MEM SOCKET
Data Sheet
0-1: $2.63
1-10: $2.17
10-100: $1.63
100-500: $1.36
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
49220
49220
Murata Power Solutions
Power Inductors 22uH 3A Dual Wind
Data Sheet
Negotiable

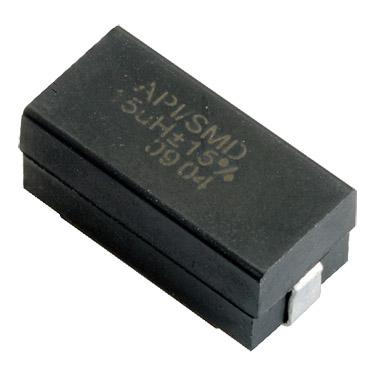

4922-01J
4922-01J
API Delevan
Power Inductors 1uH 5% .013ohm Hi Currnt Molded SMT
Data Sheet
0-485: $1.69
485-500: $1.62
500-800: $1.62
800-1000: $1.57
4922-01K
4922-01K
API Delevan
Power Inductors 1uH 10% .013ohm Hi Currnt Molded SMT
Data Sheet
0-485: $1.21
485-500: $1.15
500-800: $1.15
800-1000: $1.12
4922-01L
4922-01L
API Delevan
Power Inductors 1 uH
Data Sheet
0-385: $1.21
385-500: $0.89
500-800: $0.89
800-1000: $0.80
4922-02J
4922-02J
API Delevan
Power Inductors 1.2uH 5% .018ohm Hi Currnt Molded SMT
Data Sheet
0-485: $1.69
485-500: $1.62
500-800: $1.62
800-1000: $1.57
4922-02K
4922-02K
API Delevan
Power Inductors 1.2uH 10% .018ohm Hi Currnt Molded SMT
Data Sheet
0-485: $1.21
485-500: $1.15
500-800: $1.15
800-1000: $1.12
