Product Summary

Standard package 2000

The temperature range of -40 ° C to 105 ° C

The package size 1008 (2520 Metric)

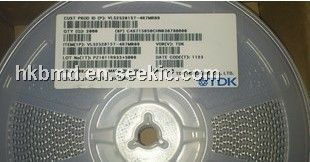

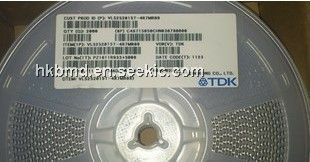

Manner of packing tape (TR)

Product catalog drawing VLS25201 (0,2,5), (0E, 2E, 5E) Series Top

VLS252015 (E) Series Side

VLS25201 (0,2,5), (0E, 2E, 5E) Series Footprint

Series VLS

Type -

Inductance 4.7 μ H

Rated current 890mA

Current saturation value 1.2A

A tolerance of ± 20%

Magnetic materials - -

Shielding

DC resistance (DCR) maximum 318 milliohms

Different frequency values of Q

Frequency - resonance -

Size / size 0.098 "L x 0.079" W x 0.039 "H (2.50mm x 2.00mm x 1.00mm)

Install mount type surface

Frequency - Test 1MHz
