Product Summary
The 1.5SMC36A is a transient voltage suppressor.
Parametrics
1.5SMC36A absolute maximum ratings: (1)Peak power dissipation with a 10/1000μs waveform : 1500 W; (2)Power dissipation on infinite heatsink, TA = 50℃ : 6.5 W; (3)Peak forward surge current 8.3ms single half sine-wave uni-directional only : 200 A; (4)Thermal resistance junction to ambient air : 75 ℃/W; (5)Thermal resistance junction to leads : 15 ℃/W; (6)Operating junction and storage temperature range : –65 to +150 ℃.
Features
1.5SMC36A features: (1)Low profile package with built-in strain relief for surface mounted applications; (2)Glass passivated junction; (3)Low incremental surge resistance; (4)Low inductance; (5)Excellent clamping capability; (6)1500W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%; (7)Very fast response time; (8)Plastic package has Underwriters Laboratory Flammability Classification 94V-0.

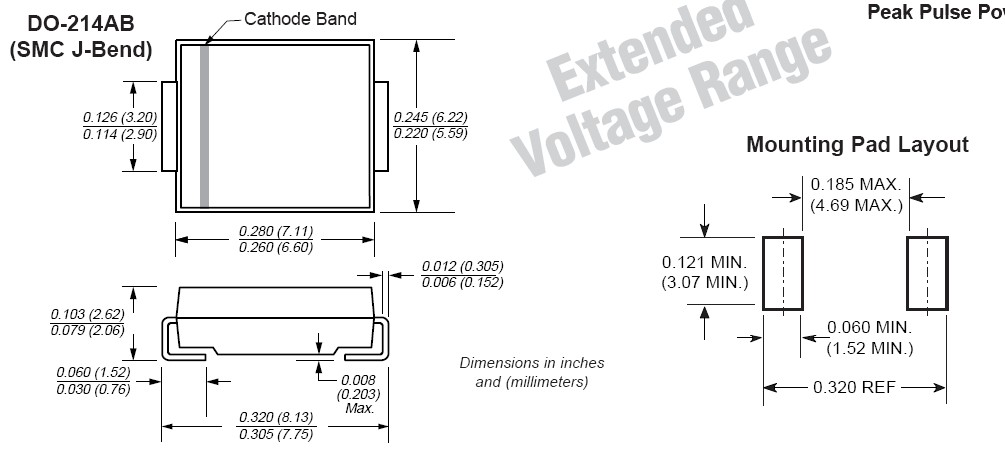

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1.5SMC36A |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors 1.5SMC36A |
Data Sheet |
|
|
||||||||||||
 |
1.5SMC36A/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 36V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
1.5SMC36A-E3/51T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 36V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
1.5SMC36A/9AT |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 36V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
1.5SMC36A/59T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 36V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
1.5SMC36A/7T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 36V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
 |
1.5SMC36AT3G |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 36V 1500W Unidirectional |
Data Sheet |
|
|
||||||||||||
|
1.5SMC36AHE3/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 36V 5% Unidir |
Data Sheet |
|
|
||||||||||||
