Product Summary

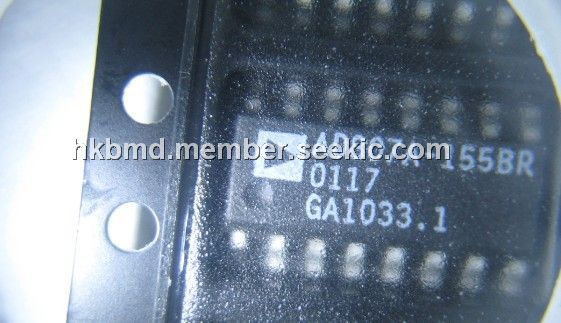

The AD807A-155BR is a Fiber Optic Receiver with Quantizer and Clock Recovery and Data Retiming. The AD807A-155BR provides the receiver functions of data quantization, signal level detect, clock recovery and data retiming for 155 Mbps NRZ data. The device, together with a PIN diode/preamplifier combination, can be used for a highly integrated, low cost, low power SONET OC-3 or SDH STM-1 fiber optic receiver. The AD807A-155BR front end signal level detect circuit indicates when the input signal level has fallen below a user adjustable threshold. The threshold is set with a single external resistor. The signal level detect circuit 3 dB optical hysteresis prevents chatter at the signal level detect output.
Parametrics
AD807A-155BR absolute maximum ratings: (1)Supply Voltage: +12 V; (2)Input Voltage (Pin 12 or Pin 13): VCC + 0.6 V; (3)Maximum Junction Temperature: +165℃; (4)Storage Temperature Range: –65 to +150℃; (5)Lead Temperature Range (Soldering 10 sec): +300℃; (6)ESD Rating (Human Body Model): 500 V.
Features
AD807A-155BR features: (1)Meets CCITT G.958 Requirements for STM-1 Regenerator—Type A; (2)Meets Bellcore TR-NWT-000253 Requirements for OC-3; (3)Output Jitter: 2.0 Degrees RMS; (4)155 Mbps Clock Recovery and Data Retiming; (5)Accepts NRZ Data, No Preamble Required; (6)Phase-Locked Loop Type Clock Recovery No Crystal Required; (7)Quantizer Sensitivity: 2 mV; (8)Level Detect Range: 2.0 mV to 30 mV; (9)Single Supply Operation: +5 V or –5.2 V; (10)Low Power: 170mW; (11)10 KH ECL/PECL Compatible Output; (12)Package: 16-Pin Narrow 150 mil SOIC.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD807A-155BR |
|
IC FIBER OPTIC RCVR 16-SOIC |
Data Sheet |
|
|
||||||
|
AD807A-155BRRL |
|
IC FIBER OPTIC RCVR 16-SOIC |
Data Sheet |
|
|
||||||
|
AD807A-155BRZRL |
|
IC RECEIVER FIBER OPTIC 16SOIC |
Data Sheet |
|
|
||||||
|
AD807A-155BRZRL7 |
|
IC RECEIVER FIBER OPTIC 16SOIC |
Data Sheet |
|
|
||||||
|
AD807A-155BRRL7 |
|
IC FIBER OPTIC RCVR 16-SOIC |
Data Sheet |
|
|
||||||
|
AD807A-155BRZ |
|
IC RECEIVER FIBER OPTIC 16SOIC |
Data Sheet |
|
|
||||||
