Product Summary
The B340B is a 3.0A surface mount schottky barrier rectifier.
Parametrics
B340B absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 40V; (2)Working Peak Reverse Voltage: 40V; (3)DC Blocking Voltage: 40V; (4)RMS Reverse Voltage: 28V; (5)Average Rectified Output Current @ TT = 100℃: 3A; (6)Forward Voltage @ IF = 3.0A VFM: 0.50V; (7)Peak Reverse Current @TA = 25℃: 0.5mA; (8)at Rated DC Blocking Voltage @TA = 100℃: 20mA; (9)Typical Junction Capacitance (Note 2) Cj: 250 pF; (10)Typical Thermal Resistance, Junction to Terminal (Note 1): 10℃/W; (11)Typical Thermal Resistance, Junction to Ambient: 50℃/W; (12)Operating Temperature Range TSTG: -55 to +150℃; (13)Storage Temperature Range Tj: -55 to +125℃.
Features
B340B features: (1)Guard Ring Die Construction for Transient Protection; (2)Ideally Suited for Automatic Assembly; (3)Low Power Loss, High Efficiency; (4)Surge Overload Rating to 100A Peak; (5)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application; (6)Plastic Material - UL Flammability Classification 94V-0.

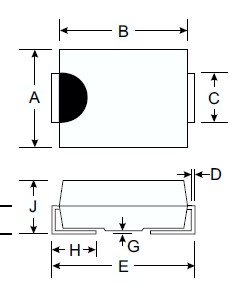

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B340B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |

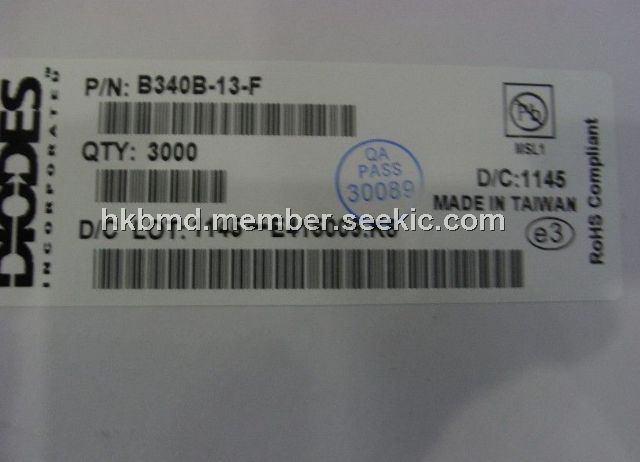

B340B-13-F |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 40V 3A |
Data Sheet |
|
|
||||||||||||
|
B340B-13 |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 40V 3A |
Data Sheet |
Negotiable |
|
||||||||||||
