Product Summary

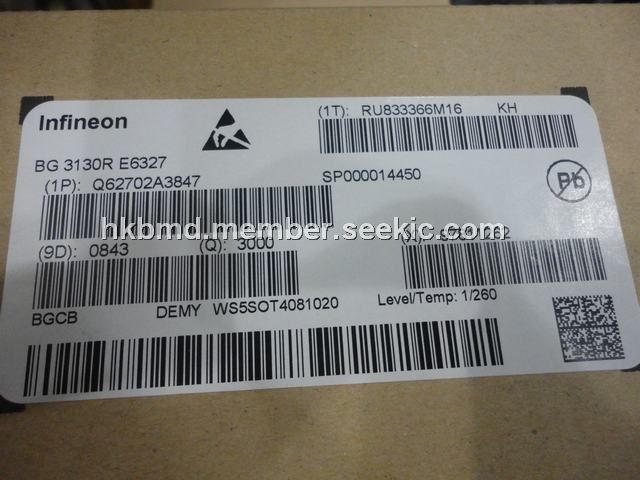

The BG3130RE6327 is a DUAL N-Channel MOSFET Tetrode.
Parametrics
SN74LVC1G125DBVR absolute maximum ratings: (1)Drain-source voltage: 8 V;(2)Continuous drain current: 25 mA;(3)Gate 1/ gate 2-source current: 1 mA;(4)Gate 1/ gate 2-source voltage: 6 V;(5)Total power dissipation: 200 mW; (6)Storage temperature: -55 to 150 ℃;(7)Channel temperature: 150 ℃.
Features
BG3130RE6327 features: (1)Two gain controlled input stages for UHF and VHF -tuners e.g.(NTSC, PAL); (3)Optimized for UHF (amp.B) and VHF (amp.A);(4)Integrated gate protection diodes;(5)High AGC-range, low noise figure, high gain; (6)Improved cross modulation at gain reduction;(7)Pb-free (RoHS compliant) package;(8)Qualified according AEC Q101.
Diagrams
 |
