Product Summary
The BYM07-200-E3 is a surface mount glass passivated junction fast efficient rectifier.
Parametrics
BYM07-200-E3 absolute maximum ratings: (1)Fast efficient device: 1st band is Green: EGL34D; (2)Polarity color bands (2nd Band): ORANGE; (3)Maximum repetitive peak reverse voltage: 200V; (4)Maximum RMS voltage VRMS: 140V; (5)Maximum DC blocking voltage VDC: 200V; (6)Maximum average forward rectified current at TT=75℃: 0.5A; (7)Maximum reverse recovery time (NOTE 1) trr: 50.0 ns; (8)Typical junction capacitance (NOTE 2) CJ: 7.0 pF; (9)Maximum thermal resistance (NOTE 3): 150.0℃/W; (10)(NOTE 4) RθJT: 70.0℃/W; (11)Operating junction and storage temperature range: -65 to 175℃.
Features
BYM07-200-E3 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)Capable of meeting environmental standards of MIL-S-19500; (3)For surface mount applications; (4)High temperature metallurgically bonded construction; (5)Glass passivated cavity-free junction; (6)Fast switching for high efficiency; (7)High temperature soldering guaranteed: 450℃/5 seconds at terminals. Complete device submersible temperature of 260℃ for 10 seconds in solder bath.

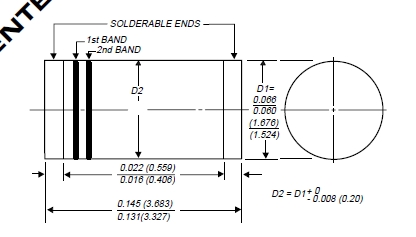

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BYM07-200-E3/82 |
Vishay Semiconductors |
Rectifiers 200 Volt 0.5A 50ns Glass Passivated |
Data Sheet |
Negotiable |
|
||||||||||||
|
BYM07-200-E3/83 |
Vishay Semiconductors |
Rectifiers 200 Volt 0.5A 50ns Glass Passivated |
Data Sheet |
|
|
||||||||||||
|
BYM07-200-E3/98 |
Vishay Semiconductors |
Rectifiers 0.5 Amp 200 Volt |
Data Sheet |
|
|
||||||||||||
