Product Summary
The DTC115EKA is a Digital transistor.
Parametrics
DTC115EKA absolute maximum ratings: (1)Supply voltage: -50V; (2)Input voltage: -40V to 10V; (3)Output current IO: -20mA ; (4)Power dissipation: 200mW; (5)Junction temperature: 150℃; (6)Storage temperature: -55℃ to 150℃.
Features

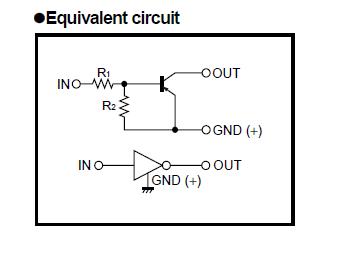

DTC115EKA features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input, and parasitic effects are almost completely eliminated; (3)Only the on/off conditions need to be set for operation, making device design easy; (4)Higher mounting densities can be achieved.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DTC115EKA |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |

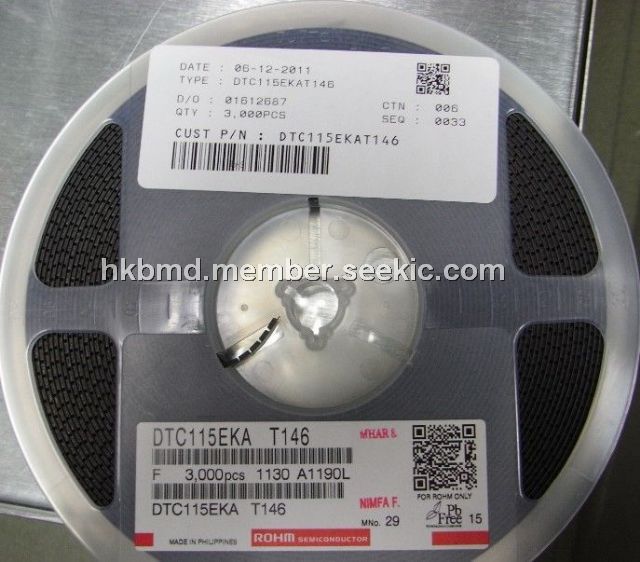

DTC115EKAT146 |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) DIGIT NPN 50V 100MA |
Data Sheet |
|
|
||||||||||||
