Product Summary
The ER2G is a surface mount superfast rectifier.
Parametrics
ER2G absolute maximum ratings: (1) Maximum Recurrent Peak Reverse Voltage : 400V; (2) Maximum Average Forward Rectified Current, atTL=110℃ : 2.0A; (3) Maximum Instantaneous Forward Voltage at 2.0A : 1.25V; (4) Maximum DC Reverse Current at Rated DC Blocking Voltage TA=25℃ : 5.0μA; (5) Maximum Reverse Recovery Time (NOTE 1) : 35.0Ns; (6) Typical Junction Capacitance (NOTE 2) : 25.0pf; (7) Typical Thermal Resistance (NOTE 3) : 20.0℃/W; (8) Operating and Storage Temperature Range : -50 to +150℃.
Features
ER2G features: (1) For surface mounted applications; (2) Low profile package; (3) Built-in strain relief; (4) Easy pick and place; (5) Superfast recovery times for high efficiency; (6) Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (7) Glass passivated junction; (8) High temperature soldering : 260℃/10 seconds at terminals.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

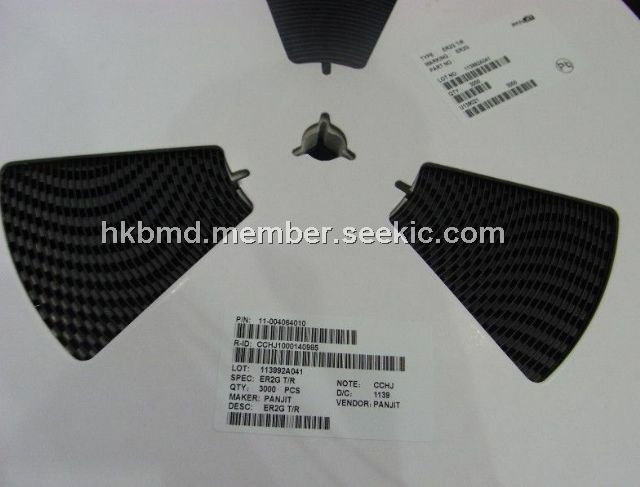

 ER2G |
Other |
|
Data Sheet |
Negotiable |
|
||||
