Product Summary

The ES1D is a surface mount superfast rectifier.

Parametrics

ES1D absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 200V; (2)Maximum RMS Voltage VRMS: 140V; (3)Maximum DC Blocking Voltage VDC: 200V; (4)Maximum Average Forward Rectified Current: 1.0A; (5)Maximum Instantaneous Forward Voltage at 1.0A: 0.95V; (6)Maximum Reverse Recovery Time: 35ns; (7)Typical Junction capacitance: 10pF; (8)Typical Thermal Resistance: 35℃/W; (9)Operating and Storage Temperature Range: -50 to 150℃.

Features

ES1D features: (1)For surface mounted applications; (2)Low profile package; (3)Built-in strain relief; (4)Easy pick and place; (5)Superfast recovery times for high efficiency; (6)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (7)Glass passivated junction.

Diagrams

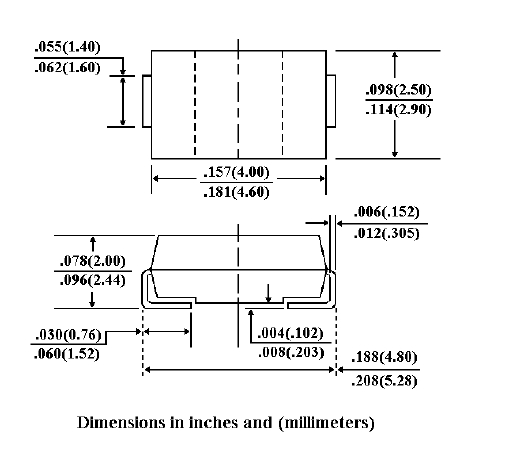

ES1D dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ES1D
ES1D
Fairchild Semiconductor
Rectifiers 1.0a Rectifier UF Recovery
Data Sheet
0-1: $0.28
1-25: $0.16
25-100: $0.12
100-250: $0.08
ES1D/1
ES1D/1

DIODE FAST 1A 200V SMA
Data Sheet
0-3600: $0.06
ES1D/11T
ES1D/11T
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
0-1: $0.17
1-50: $0.14
50-100: $0.12
100-500: $0.10
ES1D/13T
ES1D/13T
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
ES1D/1T
ES1D/1T
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
ES1D/2FT
ES1D/2FT
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
ES1D/2GT
ES1D/2GT
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
ES1D/5AT
ES1D/5AT
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
