Product Summary

The LL4148 is a Small Signal Fast Switching Diode. The applications of the LL4148 include Extreme fast switches.

Parametrics

LL4148 absolute maximum ratings: (1)Repetitive peak reverse voltage VRRM: 100 V; (2)Reverse voltage VR: 75 V; (3)Peak forward surge current tp = 1 μs IFSM: 2 A; (4)Repetitive peak forward current IFRM: 500 mA; (5)Forward continuous current IF: 300 mA; (6)Average forward current VR = 0 IFAV: 150 mA; (7)Power dissipation PV: 500 mW.

Features

LL4148 features: (1)Silicon Epitaxial Planar Diodes; (2)Electrical data identical with the devices 1N4148 and 1N4448 respectively; (3)Lead (Pb)-free component; (4)Component in acc. to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

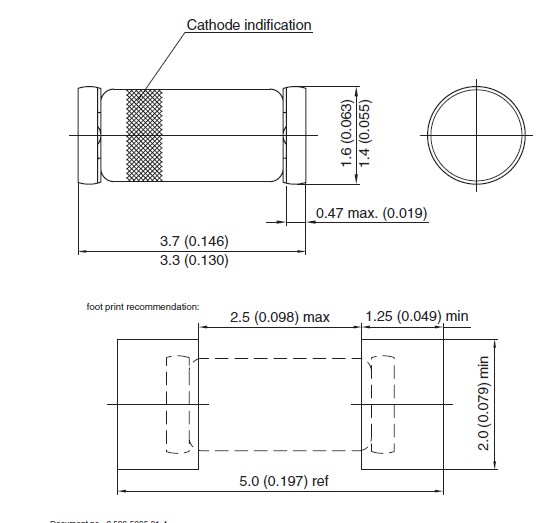

LL4148 dimension
