Product Summary

The MBRS240LT3G is a Surface Mount Schottky Power Rectifier. The MBRS240LT3G employs the Schottky Barrier principle in a metal-to-silicon power rectifier. Features epitaxial construction with oxide passivation and metal overlay contact. Ideally the MBRS240LT3G is suited for low voltage, high frequency switching power supplies; free wheeling diodes and polarity protection diodes.

Parametrics

MBRS240LT3G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 40V; (2)Working Peak Reverse Voltage: 40V; (3)DC Blocking Voltage: 40V; (4)Average Rectified Forward Current (At Rated VR, TC = 100℃): 2A; (5)Peak Repetitive Forward Current (At Rated VR, Square Wave, 20 kHz, TC = 105℃): 4A; (6)Storage/Operating Case Temperature Tstg, TC: -55 to +150℃; (7)Operating Junction Temperature: -55 to +150℃.

Features

MBRS240LT3G features: (1)Compact Package with J-Bend Leads Ideal for Automated Handling; (2)Highly Stable Oxide Passivated Junction; (3)Guard-Ring for Overvoltage Protection; (4)Low Forward Voltage Drop; (5)Pb-Free Package is Available.

Diagrams

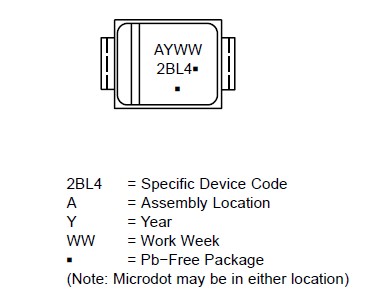

MBRS240LT3G Pin Configuration
