Product Summary

The MBRS540T3G is a Surface Mount Schottky Power Rectifier. The MBRS540T3G employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally the MBRS540T3G is suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.

Parametrics

MBRS540T3G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 40V; (2)Working Peak Reverse Voltage: 40V; (3)DC Blocking Voltage: 40V; (4)Average Rectified Forward Current (At Rated VR, TC = 100℃): 5A; (5)Peak Repetitive Forward Current (At Rated VR, Square Wave, 20 kHz, TC = 80℃): 10A; (6)Storage/Operating Case Temperature Tstg, TC: -65 to +150℃; (7)Operating Junction Temperature: -65 to +150℃.

Features

MBRS540T3G features: (1)Pb-Free Package is Available; (2)Small Compact Surface Mountable Package with J-Bend Leads; (3)Rectangular Package for Automated Handling; (4)Highly Stable Oxide Passivated Junction; (5)Excellent Ability to Withstand Reverse Avalanche Energy Transients; (6)Guardring for Stress Protection.

Diagrams

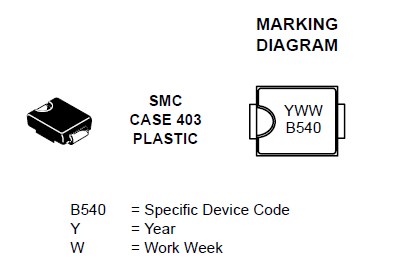

MBRS540T3G Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBRS540T3G
MBRS540T3G
ON Semiconductor
Schottky (Diodes & Rectifiers) 5A 40V
Data Sheet
0-1: $0.38
1-25: $0.29
25-100: $0.25
100-500: $0.19
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBRS10100
MBRS10100
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 10 Amp 100 Volt Single
Data Sheet
0-800: $0.45
800-1600: $0.37
1600-3200: $0.32
3200-5600: $0.29
MBRS10100CT
MBRS10100CT
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 10 Amp 100 Volt Dual
Data Sheet
0-800: $0.45
800-1600: $0.37
1600-3200: $0.32
3200-5600: $0.29
MBRS1035
MBRS1035
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 10 Amp 35 Volt Single
Data Sheet
0-800: $0.37
800-1600: $0.30
1600-3200: $0.26
3200-5600: $0.23
MBRS1035CT
MBRS1035CT
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 10 Amp 35 Volt Dual
Data Sheet
0-800: $0.43
800-1600: $0.35
1600-3200: $0.31
3200-5600: $0.28
MBRS1045
MBRS1045
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 10 Amp 45 Volt Single
Data Sheet
0-800: $0.37
800-1600: $0.30
1600-3200: $0.26
3200-5600: $0.23
MBRS1045CT
MBRS1045CT
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 10 Amp 45 Volt Dual
Data Sheet
0-800: $0.43
800-1600: $0.35
1600-3200: $0.31
3200-5600: $0.28
