Product Summary

The MUR110RLG is a ultrafast rectifier.

Parametrics

MUR110RLG absolute maximum ratings: (1) Peak Repetitive Reverse Voltage : 100 V; (2) Nonrepetitive Peak Surge Current (Surge applied at rated load conditions, halfwave, single phase, 60 Hz) : 35 A; (3) Operating Junction Temperature and Storage Temperature : -65 to +175 ℃.

Features

MUR110RLG features: (1)Ultrafast 25, 50 and 75 Nanosecond Recovery Times; (2)175℃ Operating Junction Temperature; (3)Low Forward Voltage; (4)Low Leakage Current; (5)High Temperature Glass Passivated Junction; (6)Reverse Voltage to 600 V; (7)Shipped in Plastic Bags; 1,000 per Bag; (8)Available Tape and Reel; 5,000 per Reel, by adding a "RL" Suffix to the Part Number; (9)These are Pb-Free Devices.

Diagrams

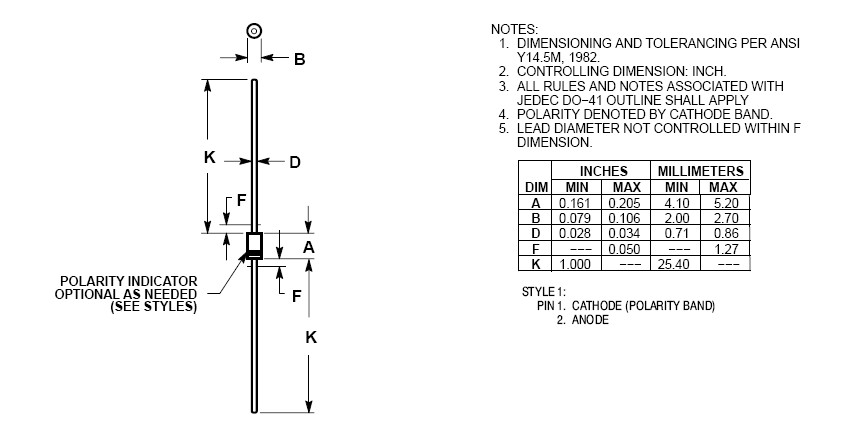

MUR110RLG dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MUR110RLG
MUR110RLG

ON Semiconductor

Rectifiers 100V 1A UltraFast

Data Sheet

0-1: $0.25
1-25: $0.16
25-100: $0.13
100-500: $0.09
