Product Summary

The MURS360T3G is a ultrafast power rectifier.

Parametrics

MURS360T3G absolute maximum ratings: (1) Peak Repetitive Reverse Voltage : 600 V; (2) Nonrepetitive Peak Surge Current (Surge applied at rated load conditions, halfwave, single phase, 60 Hz) : 75 A; (3) Operating Junction Temperature and Storage Temperature : -65 to +175 ℃.

Features

MURS360T3G features: (1)Small Compact Surface Mountable Package with J-Bend Leads; (2)Rectangular Package for Automated Handling; (3)Highly Stable Oxide Passivated Junction; (4)Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 3.0 A, TJ = 150℃); (5)Pb-Free Packages are Available.

Diagrams

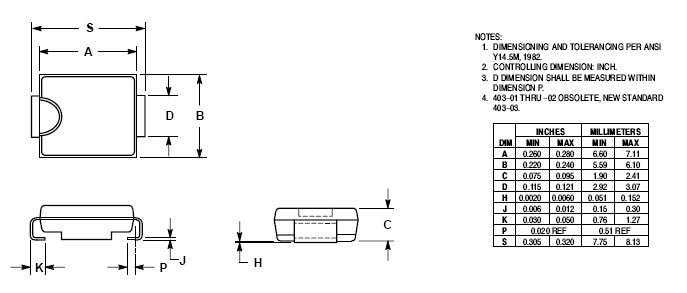

MURS360T3G dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

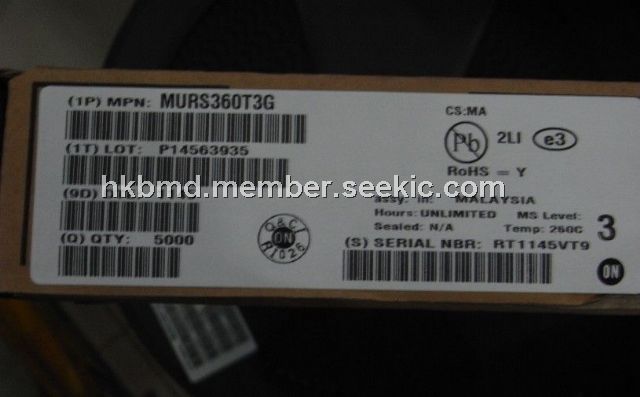

MURS360T3G
MURS360T3G

ON Semiconductor

Rectifiers 600V 3A Ultrafast

Data Sheet

0-1: $0.43
1-25: $0.34
25-100: $0.29
100-500: $0.22
