Product Summary

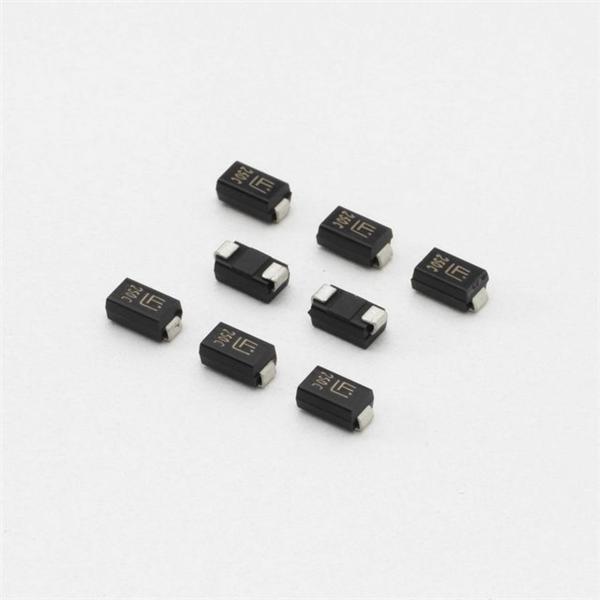

The P4SMAJ30CA is a surface mount transient voltage suppressor.

Parametrics

P4SMAJ30CA absolute maximum ratings: (1)Peak Power Dissipation at TA=25℃, TP=1ms: Minimum 400W; (2)Peak Forward Surge Current: 40A; (3)Steady State Power Dissipation(Note 4): 1W; (4)Operating and Storage Temperature Range: -55 to 150℃.

Features

P4SMAJ30CA features: (1)For surface mounted applications in order to optimize board space; (2)Low profile package; (3)Built-in strain relief; (4)Glass passivated junction; (5)Excellent clamping capability; (6)Low inductance; (7)Fast response time: typically less than 1.0 ps from 0 volts to BV min; (8)Typical IR less than 1μA above 10V; (9)High temperature soldering : 250℃/10 seconds at terminals.; (10)Plastic package has Underwriters Laboratory Flammability Classification 94V-O.

Diagrams

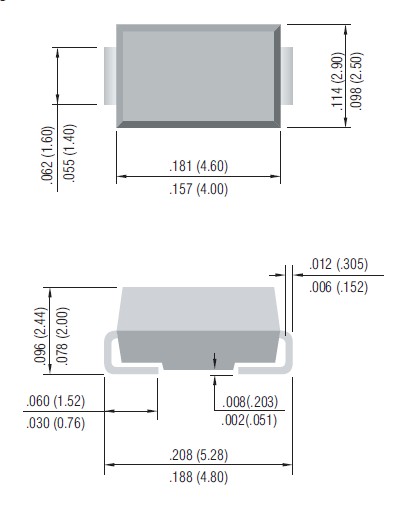

P4SMAJ30CA dimension
