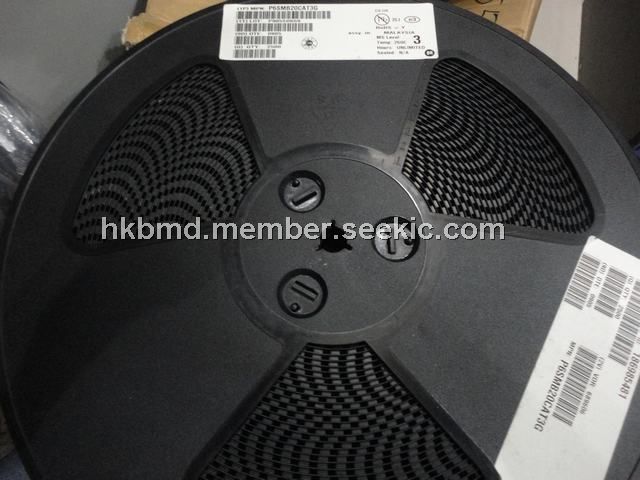

P6SMB20CAT3G

P6SMB20CAT3G, 600W, Peak Power Zener Transient Voltage Suppressor, DO, 0.55W, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.04~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.04~0.10

PartNumber:: P6SMB20CAT3G

Brand:: ON Semiconductor - ON | Pack: DO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Iceble's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-18

From Other Seller

Part Number:P6SMB20CAT3G
US $0.04 - 0.10
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The P6SMB20CAT3G is a 600 Watt Peak Power Zener Transient Voltage Suppressor. The P6SMB20CAT3G is designed to protect voltage sensitive components from high voltage, high energy transients. The P6SMB20CAT3G has excellent clamping capability, high surge capability, low zener impedance and fast response time. The P6SMB20CAT3G is supplied in exclusive, cost-effective, highly reliable Surmetic package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.

Parametrics

P6SMB20CAT3G absolute maximum ratings: (1)Peak Power Dissipation (Note 1) @ TL = 25℃, Pulse Width = 1ms PPK: 600W; (2)DC Power Dissipation @ TL = 75℃ Measured Zero Lead Length (Note 2): 3W; (3)Derate Above 75℃: 40mW/℃; (4)Thermal Resistance, Junction-to-Lead: 25℃/W; (5)DC Power Dissipation (Note 3) @ TA = 25℃: 0.55W; (6)Derate Above 25℃: 4.4mW/℃; (7)Thermal Resistance, Junction-to-Ambient: 226℃/W; (8)Operating and Storage Temperature Range TJ, Tstg: -65 to +150℃.

Features

P6SMB20CAT3G features: (1)Working Peak Reverse Voltage Range - 9.4 to 77.8 V; (2)Standard Zener Breakdown Voltage Range - 11 to 91 V; (3)Peak Power - 600 W @ 1 ms; (4)ESD Rating of Class 3 (＞16 KV) per Human Body Model; (5)Maximum Clamp Voltage @ Peak Pulse Current; (6)Low Leakage ＜5μA Above 10 V; (7)UL 497B for Isolated Loop Circuit Protection; (8)Response Time is Typically ＜1ns; (9)Pb-Free Packages are Available.
