Product Summary

The SK36 is a surface mount schottky barrier rectifier.

Parametrics

SK36 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage VRRM: 60V; (2)Maximum RMS Voltage VRMS: 42V; (3)Maximum DC Blocking Voltage VDC: 60V; (4)Maximum Average Forward Rectified Current at TL=75℃ I(AV): 3.0A; (5)Maximum Instantaneous Forward Voltage at 3.0A(Note 1) VF: 0.7V; (6)Maximum DC Reverse Current TA=25℃ (Note 1): 0.5mA; (7)At Rated DC Blocking Voltage TA=100℃: 20mA; (8)Maximum Thermal Resistance (Note 2): 17℃/W; (9)Operating Junction Temperature Range TJ: -50 to +125℃; (10)Storage Temperature Range: -50 to 150℃.

Features

SK36 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (2)For surface mounted applications; (3)Low profile package; (4)Built-in strain relief; (5)Metal to silicon rectifier majority carrier conduction; (6)Low power loss, High efficiency; (7)High current capability, low VF; (8)High surge capacity; (9)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (10)High temperature soldering guaranteed: 260℃/10 seconds at terminals.

Diagrams

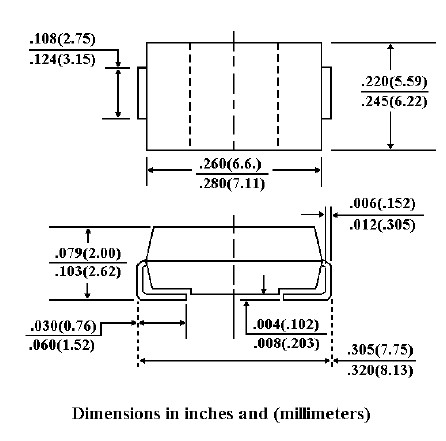

SK36 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SK36
SK36


RECT SCHOTTKY 3A 60V DO-214AB

Data Sheet

Negotiable
SK36-7
SK36-7

Diodes Inc.

Schottky (Diodes & Rectifiers) 3.0A 60V

Data Sheet

Negotiable
SK36-7-F
SK36-7-F

Diodes Inc.

Schottky (Diodes & Rectifiers) 3.0A 60V

Data Sheet

0-1: $1.15
1-10: $1.03
10-100: $0.81
100-250: $0.72
250-500: $0.64
