Product Summary
The SMAJ10A-E3 is a 400W surface mount transient voltage suppressor.
Parametrics
SMAJ10A-E3 absolute maximum ratings: (1)Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25℃) PPK: 400W; (2)Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) IFSM: 40A; (3)Instantaneous Forward Voltage @ IPP = 35A (Notes 1, 2, & 3) VF: 3.5V; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.
Features
SMAJ10A-E3 features: (1)400W Peak Pulse Power Dissipation; (2)5.0V - 170V Standoff Voltages; (3)Glass Passivated Die Construction; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMAJ10A-E3/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 10V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMAJ10A-E3/2G |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 10V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|

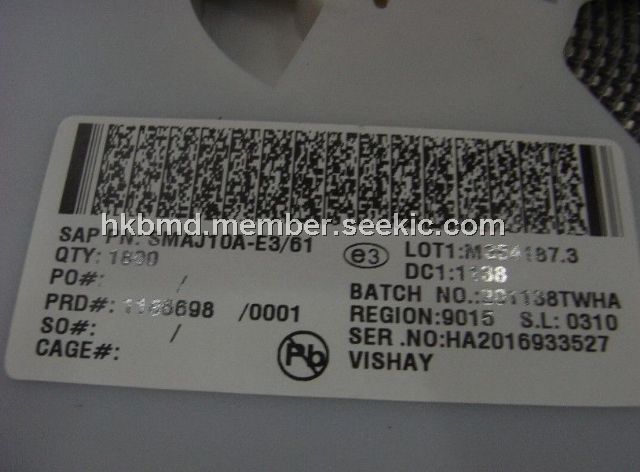

SMAJ10A-E3/61 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 10V 5% Uni |
Data Sheet |
|
|
||||||||||||
|
SMAJ10A-E3/5A |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 10V 5% Uni |
Data Sheet |
|
|
||||||||||||
|
SMAJ10A-E3/51 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 10V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMAJ10A-E3/63 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 10V 5% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
