Product Summary

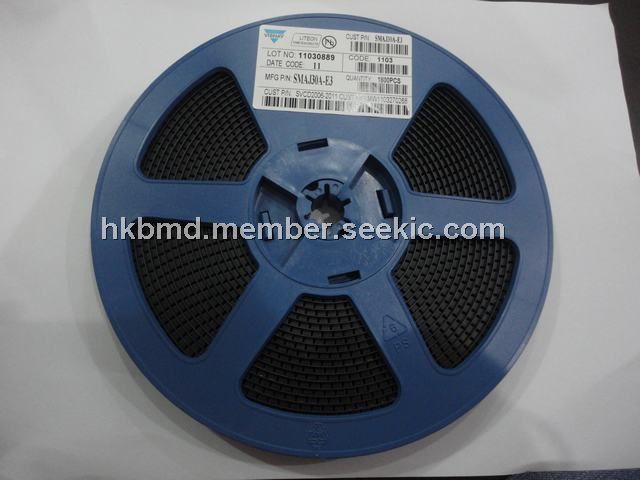

The SMAJ30A is a 400W surface mount transient voltage suppressor.
Parametrics
SMAJ30A absolute maximum ratings: (1)Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25℃) PPK: 400W; (2)Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) IFSM: 40A; (3)Instantaneous Forward Voltage @ IPP = 35A (Notes 1, 2, & 3) VF: 3.5V; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.
Features
SMAJ30A features: (1)400W Peak Pulse Power Dissipation; (2)5.0V - 170V Standoff Voltages; (3)Glass Passivated Die Construction; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Material: UL Flammability Classification Rating 94V-0.

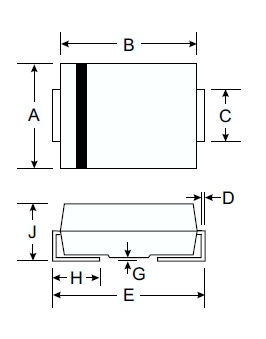

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMAJ30A/11 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 30V 5% Uni |
Data Sheet |
|
|
|||||||||||||||
SMAJ30A/13 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 30V 5% Uni |
Data Sheet |
|
|
|||||||||||||||
SMAJ30A/5A |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 30V 5% Uni |
Data Sheet |
Negotiable |
|
|||||||||||||||
SMAJ30A/61 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 30V 5% Uni |
Data Sheet |
Negotiable |
|
|||||||||||||||
SMAJ30A-13-F |
Diodes Inc. |
TVS Diodes - Transient Voltage Suppressors 400V 30V |
Data Sheet |
|
|
|||||||||||||||
SMAJ30A-7 |
Micro Commercial Components (MCC) |
TVS Diodes - Transient Voltage Suppressors 30V 400 Watts |
Data Sheet |
Negotiable |
|
|||||||||||||||
SMAJ30A-7P |
Micro Commercial Components (MCC) |
TVS Diodes - Transient Voltage Suppressors 30V 400 Watts |
Data Sheet |
|
|
|||||||||||||||
SMAJ30A-TR |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors 400W 30V Unidirect |
Data Sheet |
|
|
