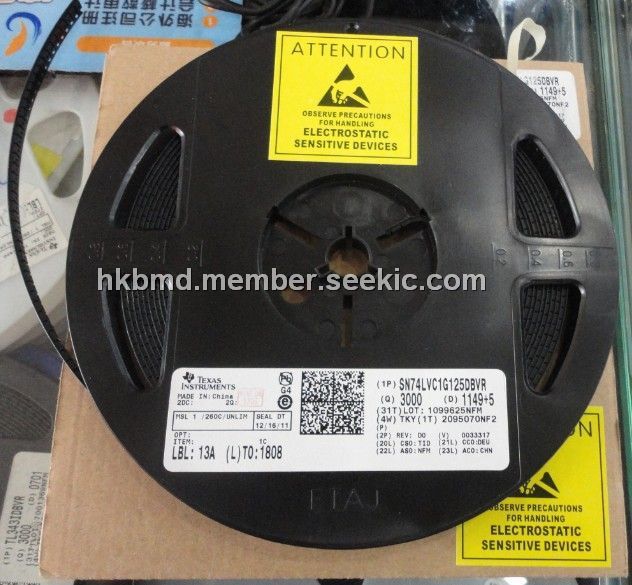

SN74LVC1G125DBVR

SN74LVC1G125DBVR, single bus buffer gate, SOT, -0.5V to 6.5V, 100mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.03~0.03 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.03~0.03

PartNumber:: SN74LVC1G125DBVR

Brand:: Texas Instruments - TI | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Iceble's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-05

From Other Seller

Part Number:SN74LVC1G125DBVR
US $0.03 - 0.03
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN74LVC1G125DBVR is a single bus buffer gate with 3-state output. It is is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G125DBVR is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the SN74LVC1G125DBVR when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull up resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Parametrics

SN74LVC1G125DBVR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 6.5 V; (2)VI Input voltage range(2): –0.5 to 6.5 V; (3)VO Voltage range applied to any output in the high-impedance or power-off state(2): –0.5 to 6.5 V; (4)VO Voltage range applied to any output in the high or low state(2) (3): –0.5 to VCC + 0.5 V; (5)IIK Input clamp current VI＜0: –50 mA; (6)IOK Output clamp current VO＜0: –50 mA; (7)IO Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)θJA Package thermal impedance(4) DRL package: 142℃/W; (10)DRY package: 234℃/W; (11)YZP package: 132℃/W; (12)DBV package: 206℃/W; (13)DCK package: 252℃/W; (14)Tstg Storage temperature range: –65 to 150℃.

Features

SN74LVC1G125DBVR features: (1)Available in the Texas Instruments NanoStar and NanoFree Packages; (2)Supports 5-V VCC Operation; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 3.7 ns at 3.3 V; (5)Low Power Consumption, 10mA Max ICC; (6)±24mA Output Drive at 3.3 V; (7)Ioff Supports Partial-Power-Down Mode Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (9)ESD Protection Exceeds JESD 22.
