Product Summary
The SS24 is a surface mount schottky barrier rectifier.
Parametrics
SS24 absolute maximum ratings: (1)Maximum Repetitive Peak Reverse Voltage : 40V; (2)Maximum RMS Voltage : 28V; (3)Maximum DC Blocking Voltage : 40V; (4)Maximum Average Forward Rectified Current (TL=100℃) : 2.0A; (5)Peak Forward Surge Current (8.3ms single half sine-wave superimposed on rated load) : 50A; (6)Maximum Instantaneous Forward Voltage (at rated forward current) : 0.5A; (7)Maximum DC Reverse Current (at rated DC blocking voltage) Ta=25℃ : 0.5 mA; (8)Maximum DC Reverse Current (at rated DC blocking voltage) Ta=100℃ : 10.0 mA; (9)Typical Junction Capacitance (Note 1) : 200pF; (10)Typical Thermal Resistance (Note 2) : 25 °C/W; (11)Storage and Operation Junction Temperature -65 to +150℃.
Features
SS24 features: (1)Ideal for surface mount pick and place application; (3)Low profile package; (4)Low power loss, high efficiency; (5)High current capability,low VF; (6)High surge capability; (7)High temperature soldering guaranteed : 260℃/10sec/at terminal.

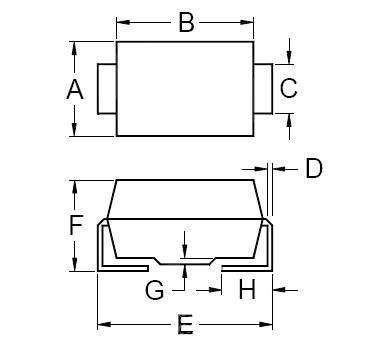

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SS24 |
Fairchild Semiconductor |
Schottky (Diodes & Rectifiers) 2a/40V Schottky |
Data Sheet |
|
|
||||||||||||
|
SS24/1 |
|
DIODE SCHOTTKY 2A 40V SMB |
Data Sheet |
|
|
||||||||||||
|
SS24/1T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS24/2BT |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS24/2CT |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS24/2T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 2.0 Amp 40 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS24/51T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|

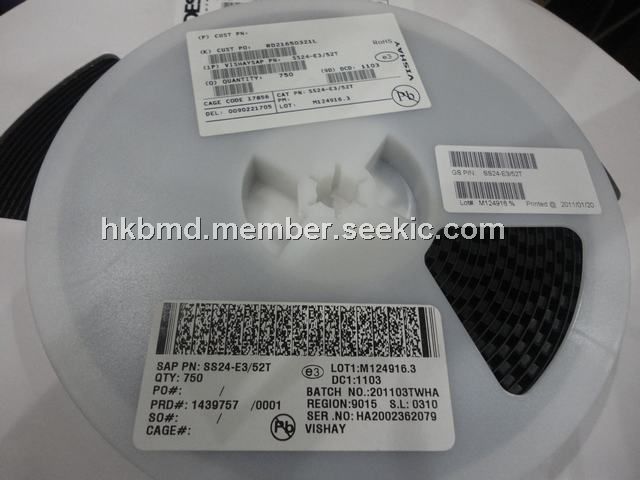

SS24/52T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
