Product Summary

The STTH1L06A is a turbo 2 ultrafast high voltage rectifier. The STTH1L06A, which is using ST Turbo 2 600V technology, is specially suited as boost diode in discontinuous or critical mode power factor corrections. The STTH1L06A is also intended for use as a free wheeling diode in power supplies and other power switching applications.

Parametrics

STTH1L06A absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 600 V; (2)IF(RMS) RMS forward current DO-41: 10A; (3)IF(AV) Average forward current: 1A; (4)Surge non repetitive forward current: 30A; (5)Tstg Storage temperature range: - 65 + 175℃; (6)Tj Maximum operating junction temperature: + 175℃.

Features

STTH1L06A features: (1)Ultrafast switching; (2)Low reverse recovery current; (3)Reduces switching & conduction losses; (4)Low thermal resistance.

Diagrams

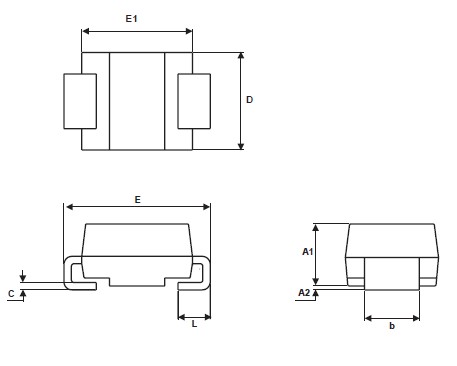

STTH1L06A dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

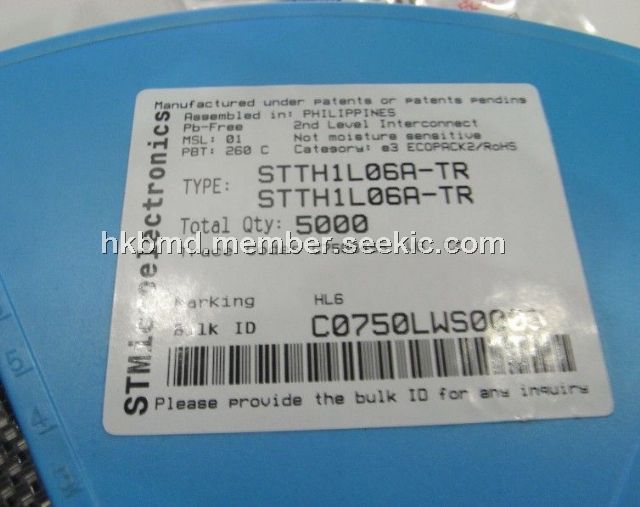

STTH1L06A
STTH1L06A
STMicroelectronics
Rectifiers 1.0 Amp 600 Volt
Data Sheet
0-1: $0.28
1-10: $0.20
10-100: $0.18
100-250: $0.15
