Product Summary
The STTH4R02 is an Ultrafast recovery diode. The STTH4R02 uses new 200 V planar Pt doping technology, and the STTH4R02 is specially suited for switching mode base drive and transistor circuits. Packaged in TO-220AC, TO-220FPAC, DPAK, SMB, SMC, and DO-201AB, the STTH4R02 is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection.
Parametrics
STTH4R02 absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 200 V; (2)IF(RMS) RMS forward current: 70A; (3)IF(AV) Average forward current: 4A; (4)IFSM Surge non repetitive forward current tp = 10ms Sinusoidal: 70 A; (5)Tstg Storage temperature range: -65 to + 175℃; (6)Tj Maximum operating junction temperature: 175℃.
Features
STTH4R02 features: (1)Very low conduction losses; (2)Negligible switching losses; (3)Low forward and reverse recovery times; (4)High junction temperature.

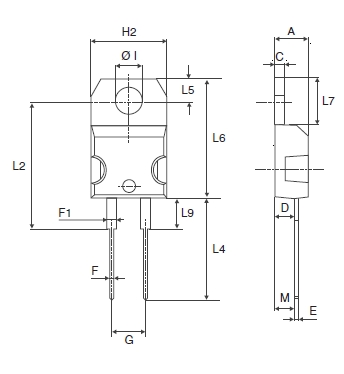

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STTH4R02 |
STMicroelectronics |
Rectifiers Recovery Diode Ultra Fast |
Data Sheet |
Negotiable |
|
||||||||||||
|
STTH4R02B |
STMicroelectronics |
Rectifiers Recovery Diode Ultra Fast |
Data Sheet |
Negotiable |
|
||||||||||||
|

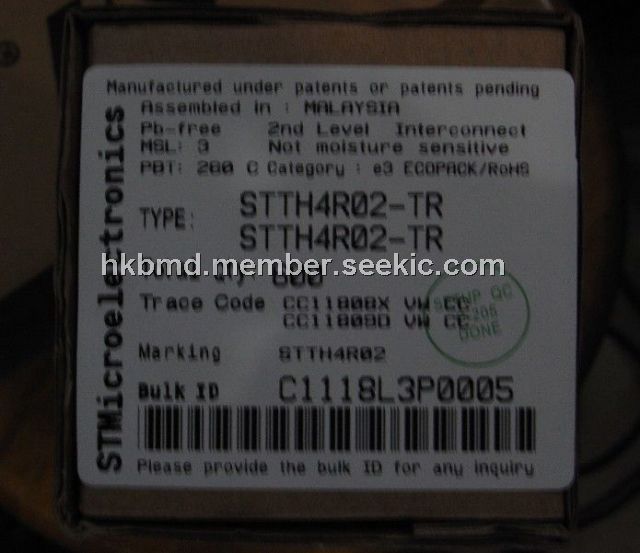

STTH4R02B-TR |
STMicroelectronics |
Rectifiers Recovery Diode Ultra Fast |
Data Sheet |
|
|
||||||||||||
|
STTH4R02RL |
STMicroelectronics |
Rectifiers Ultrafast recovery Diode |
Data Sheet |
|
|
||||||||||||
|
STTH4R02D |
STMicroelectronics |
Rectifiers Recovery Diode Ultra Fast |
Data Sheet |
Negotiable |
|
||||||||||||
|
STTH4R02FP |
STMicroelectronics |
Rectifiers RECTIFIER |
Data Sheet |
Negotiable |
|
||||||||||||
|
STTH4R02U |
STMicroelectronics |
Rectifiers RECTIFIER |
Data Sheet |
|
|
||||||||||||
|
STTH4R02UY |
STMicroelectronics |
Rectifiers Ultrafast Recovery4A 200V 16ns Planar Pt |
Data Sheet |
|
|
||||||||||||
