The SX34 is a surface mount schottky barrier rectifier.
Parametrics
SX34 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 40V; (2)Maximum RMS Voltage: 28V; (3)Maximum DC Blocking Voltage: 40V; (4)Maximum Average Forward Rectified Current at TL: 3A; (5)Peak Forward Surge Current 8.3ms single half sine wave superimposed on rated load (JEDEC method): 80A; (6)Maximum Instantaneous Forward Voltage at 3.0A: 0.5V; (7)Maximum DC Reverse Current (Note 1) Ta= 25℃:0.5mA; (8)at Rated DC Blocking Voltage Ta=100℃: 20mA; (9)Maximum Thermal Resistance(Note 2): 17℃/W; (10)Operating and Storage Temperature Range TJ: -50 to 150℃; (11)Storage Temperature Range: -50 to 150℃.
Features
SX34 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (2)For surface mounted applications; (3)Low profile package; (4)Built-in strain relief; (5)Metal to silicon rectifier. majority carrier conduction; (6)Low power loss,high efficiency; (7)High surge capacity; (8)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (9)High temperature soldering guaranteed: 260℃/10 seconds at terminals.

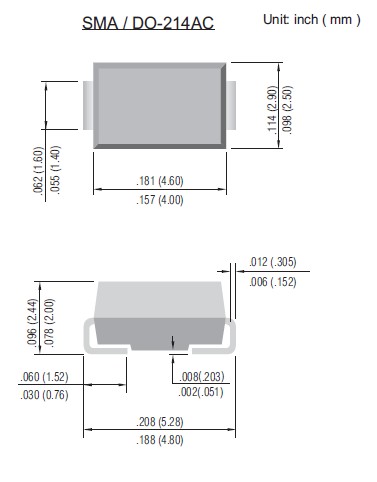

Diagrams
