Product Summary

small-sized semaphore relay

One tube include 25pcs

MOQ:20tube=500pcs

Parametrics

Brand: Huike


Type: signal relay


Series: HK23F series

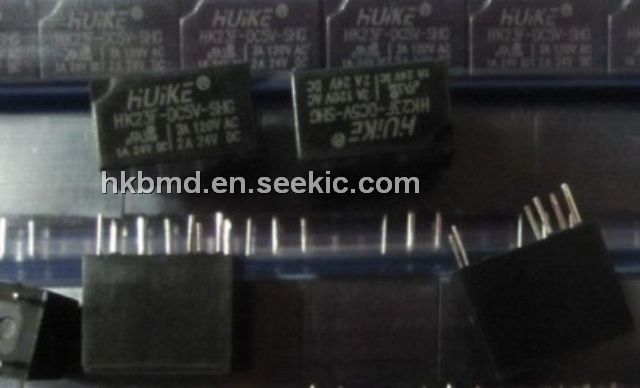

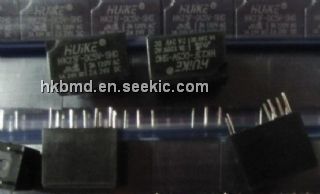

Model No.: HK23F-DC5V-SHG


Dimensions (mm): 12.5 x 7.3 x 9.5mm (L * W * H)


Weight: 2.2g


Contact parameters:


Contact type: 1C (DPDT)


The contact load: 1A/24VDC


Resistance: ≤ 100m.


Rated current: 1A


Electrical life: 105


Mechanical life: ≥ 5 × 106


Coil parameters:


Resistance (+ 10%):166.7.


Coil power consumption: 150mW


Rated voltage: DC 5V


The pull in voltage: DC 4V


Release voltage: DC 0.5V


Operating temperature: -30 ℃ ~ +70 ℃


Insulation resistance: ≥ 1000M.


Coil and contacts: 1000VAC/1 minutes


Contact and contacts: 400VAC/1 minutes


HK23F series


HK23F-DC5V-SHG HK23F-DC5V-SHG
