Product Summary

Products: IGBT Silicon Modules

Configuration: Hex

Collector Emitter maximum voltage of VCEO: 1200 V

Collector Emitter Saturation Voltage: 2.5 V

Continuous collector current at 25 C: 25 A

The gate and emitter leakage current: 150 nA

Power dissipation: 145 W

The maximum operating temperature: + 150 C

Package / Case: EconoPACK 2

Package: Reel

The gate / emitter maximum voltage: 20 V

Minimum working temperature: - 40 C

Installation style: Screw

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

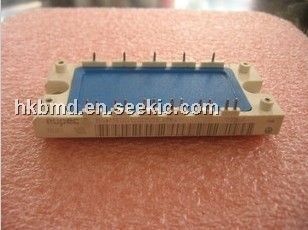

BSM15GD120DN2E3224
BSM15GD120DN2E3224
Infineon Technologies
IGBT Modules N-CH 1.2KV 25A
Data Sheet
0-1: $28.79
1-10: $25.91
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM100GAL120DLCK
BSM100GAL120DLCK
Infineon Technologies
IGBT Modules 1200V 100A CHOPPER
Data Sheet
0-1: $44.53
1-10: $40.07
BSM100GAL120DN2
BSM100GAL120DN2
Infineon Technologies
IGBT Modules 1200V 100A CHOPPER
Data Sheet
Negotiable
BSM100GAR120DN2
BSM100GAR120DN2
Infineon Technologies
IGBT Transistors 1200V 100A DUAL
Data Sheet
Negotiable
BSM100GB120DLC
BSM100GB120DLC
Infineon Technologies
IGBT Modules 1200V 100A DUAL
Data Sheet
0-6: $78.93
6-10: $71.03
BSM100GB120DLCK
BSM100GB120DLCK
Infineon Technologies
IGBT Modules 1200V 100A DUAL
Data Sheet
0-1: $49.93
1-5: $47.43
5-10: $44.93
10-50: $43.44
BSM100GB120DN2
BSM100GB120DN2
Infineon Technologies
IGBT Modules 1200V 100A DUAL
Data Sheet
0-1: $82.74
1-10: $74.47
