Product Summary

Standard package 3000

The temperature range of -40 ° C to 85 ° C

Package size (0.154 "8-SOIC, 3.90mm width)

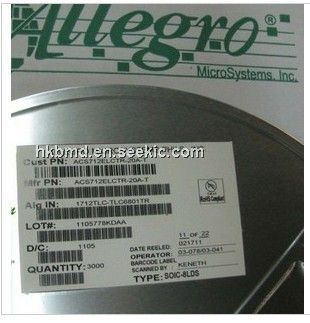

Manner of packing tape (TR)

Characteristics of ACS712 Current Sensor IC Allegro ?

Series

Current detection of ± 30A

Accuracy of ± 1.5%

Sensitivity of 63 ~ 69 mV/A

Current power supply - 10mA

Sensor type of Holzer effect

Voltage - supply 4.5 V ~ 5.5 V

Output 2.5V

The frequency of 80kHz

Response time of 5 μ s

The polarized bidirectional

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ACS712ELCTR-30A-T
ACS712ELCTR-30A-T

SENSOR CURRENT 30A 5V BI 8-SOIC
Data Sheet
0-1: $2.23
1-10: $2.00
10-50: $1.80
50-100: $1.63
100-250: $1.48
250-500: $1.32
500-1000: $1.11
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ACS704ELC-005
ACS704ELC-005

SENSOR CURRENT 5A 5V BI 8-SOIC
Data Sheet
Negotiable
ACS704ELC-015
ACS704ELC-015

SENSOR CURRENT 15A 5V BI 8-SOIC
Data Sheet
Negotiable
ACS706ELC-05C
ACS706ELC-05C

SENSOR CURRENT 5A 5V BI 8-SOIC
Data Sheet
Negotiable
ACS709LLF-6BB-T
ACS709LLF-6BB-T

IC CURRENT SENSOR 24-QSOP
Data Sheet
0-2500: $0.97
ACS709LLFTR-20BB-T
ACS709LLFTR-20BB-T

SENSOR CURR 37.5A 5V BI 24QSOP
Data Sheet
0-2500: $0.97
2500-5000: $0.93
5000-12500: $0.90
12500-25000: $0.87
ACS709LLFTR-35BB-T
ACS709LLFTR-35BB-T

SENSOR CURRENT 75A 5V BI 24QSOP
Data Sheet
0-1: $2.09
1-10: $1.87
10-50: $1.68
50-100: $1.53
100-250: $1.39
250-500: $1.24
500-1000: $1.05
