Product Summary

The 1SMB5919BT3G is a zener voltage regulator.

Parametrics

1SMB5919BT3G absolute maximum ratings: (1)Maximum Steady State Power Dissipation @ TL = 75℃ Measured at Zero Lead Length : 3.0 W; (2)Maximum Steady State Power Derate Above 75℃ : 40mW/℃; (3)Thermal Resistance from Junction-to-Lead : 25℃/W; (4)Maximum Steady State Power Dissipation @ TA = 25℃ : 550mW; (5)Maximum Steady State Power Derate Above 25℃ : 4.4 mW/℃; (6)Thermal Resistance from Junction-to-Ambient : 226℃/W; (7)Operating and Storage Temperature Range :-65 to 150℃.

Features

1SMB5919BT3G features: (1)Zener Voltage Range - 3.3 V to 200 V; (2)ESD Rating of Class 3 (>16 kV) per Human Body Model; (3)Flat Handling Surface for Accurate Placement; (4)Package Design for Top Side or Bottom Circuit Board Mounting; (5)Pb-Free Packages are Available.

Diagrams

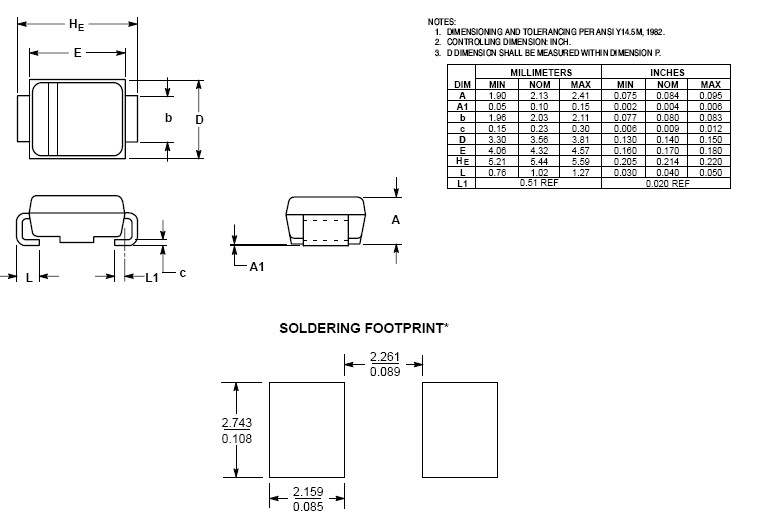

1SMB5919BT3G dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1SMB5919BT3G
1SMB5919BT3G

ON Semiconductor

Zener Diodes 5.6V 3W

Data Sheet

0-1: $0.20
1-25: $0.17
25-100: $0.11
100-500: $0.09
