Product Summary

The 20BQ030 is a schottky rectifier. The 20BQ030 has been designed for applications requiring low forward drop and small foot prints on PC boards. Typical applications of the 20BQ030 are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.

Parametrics

20BQ030 absolute maximum ratings: (1)IF(AV) Rectangular waveform: 2.0 A; (2)VRRM: 30 V; (3)IFSM @ tp = 5 μs sine: 350 A; (4)VF @ 2.0 Apk, TJ=125℃: 0.37 V; (5)TJ range: - 55 to 150℃.

Features

20BQ030 features: (1)Small foot print, surface mountable; (2)Very low forward voltage drop; (3)High frequency operation; (4)Guard ring for enhanced ruggedness and long term reliability.

Diagrams

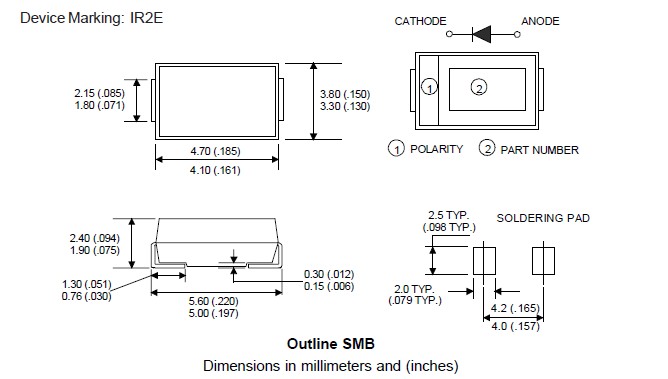

20BQ030 dimension
