Product Summary
The SMBJ33A-TR is a 600W surface mount transient voltage suppressor.
Parametrics
SMBJ33A-TR absolute maximum ratings: (1)Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25℃) (Note 1) PPK: 600W; (2)Peak Power Derating Above 25℃ Pder: 4.8 W/℃; (3)Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (Notes 1, 2, & 3) IFSM: 100A; (4)Steady State Power Dissipation @ TL = 75℃ PM(AV): 5.0W; (5)Instantaneous Forward Voltage @ IPP = 35A VBR＜100V: 3.5V; (6)Operating Temperature Range Tj: -55 to +150℃; (7)Storage Temperature Range TSTG: -55 to +175℃.
Features
SMBJ33A-TR features: (1)600W Peak Pulse Power Dissipation; (2)5.0V - 170V Standoff Voltages; (3)Glass Passivated Die Construction; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time.

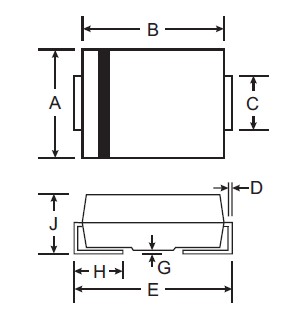

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

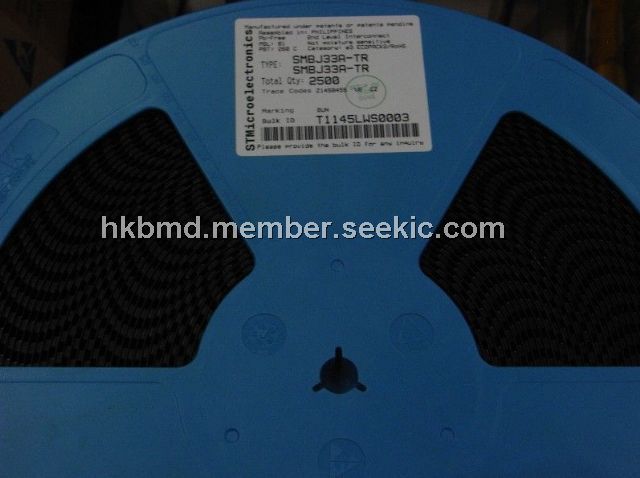

 SMBJ33A-TR |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors 600W 33V Unidirect |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
SMBJ |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ 5.0C - 170CA |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ Series |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ10 |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors 10Vr 600W 35.3A 10% UniDirectional |
Data Sheet |
|
|
||||||||||||
|
SMBJ10/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 10% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMBJ10/2 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 10V 10% Uni |
Data Sheet |
Negotiable |
|
||||||||||||
