Product Summary

The 31DQ06TR is a Schottky Rectifier. The 31DQ06TR has been optimized for very low forward voltage drop, with moderate leakage. Typical applications of the 31DQ06TR are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

Parametrics

31DQ06TR absolute maximum ratings: (1)Maximum average forward current: 3.3A; (2)Maximum peak one cycle A non-repetitive surge current: 340A; (3)Non-repetitive avalanche energy: 5mJ; (4)Repetitive avalanche current: 1A.

Features

31DQ06TR features: (1)Low profile, axial leaded outline; (2)High frequency operation; (3)Very low forward voltage drop; (4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (5)Guard ring for enhanced ruggedness and long term reliability; (6)Lead (Pb)-free plating; (7)Designed and qualified for industrial level.

Diagrams

31DQ06TR Pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

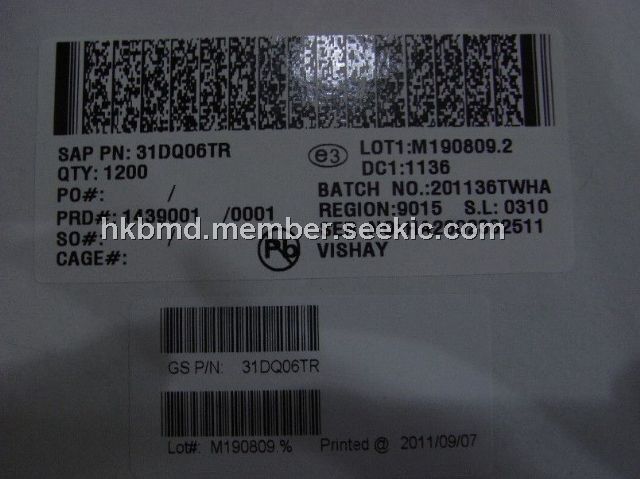

31DQ06TR
31DQ06TR

DIODE SCHOTTKY 60V 3.3A C-16
Data Sheet
0-1200: $0.22
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
31DQ03
31DQ03

DIODE SCHOTTKY 30V 3.3A C-16
Data Sheet
0-1: $0.46
1-10: $0.40
10-25: $0.35
25-100: $0.31
100-250: $0.27
250-500: $0.23
500-1000: $0.18
1000-2500: $0.16
2500-5000: $0.15
31DQ03L
31DQ03L
Other

Data Sheet
Negotiable
31DQ03TR
31DQ03TR

DIODE SCHOTTKY 30V 3.3A C-16
Data Sheet
0-1200: $0.18
31DQ04
31DQ04

DIODE SCHOTTKY 40V 3.3A C-16
Data Sheet
0-1: $0.57
1-10: $0.51
10-25: $0.46
25-100: $0.40
100-250: $0.35
250-500: $0.31
500-1000: $0.24
1000-2500: $0.23
2500-5000: $0.22
31DQ04TR
31DQ04TR

DIODE SCHOTTKY 40V 3.3A C-16
Data Sheet
0-1200: $0.24
31DQ05, 31DQ06
31DQ05, 31DQ06
Other

Data Sheet
Negotiable
