Product Summary

The AD807A-155BR is a stereo A/D Converter with wide sampling rate of 8kHz to 96kHz and is suitable for consumer to professional audio system. The AD807A-155BR achieves high accuracy and low cost by using Enhanced dual bit ΔΣ techniques. The AD807A-155BR requires no external components because the analog inputs are single-ended. The audio interface has two formats (MSB justified, I2S) and can correspond to various systems like DTV, DVR and AV Receiver.

Parametrics

AD807A-155BR absolute maximum ratings: (1)Analog VA -0.3V to 6V; (2)Digital VD: -0.3V to 6V; (3)|AGND – DGND| (Note 2): 0.3V; (4)Input Current, Any Pin Except Supplies IIN: ±10mA; (5)Analog Input Voltage (AINL, AINR, CKS1 pins) VINA: -0.3 to VA+0.3 V; (6)Digital Input Voltage (Note 3) VIND: -0.3 to VD+0.3 V; (7)Ambient Temperature (powered applied) Ta -20 to 85℃; (8)Storage Temperature Tstg -65 to 150℃.

Features

AD807A-155BR features: (1)Linear Phase Digital Anti-Alias Filtering; (2)Single-ended Input; (3)Digital HPF for DC-Offset cancel; (4)S/(N+D): 92dB; (5)DR: 102dB; (6)S/N: 102dB; (7)Sampling Rate Ranging from 8kHz to 96kHz; (8)Master Clock: 256fs/384fs/512fs/768fs (8kHz to 48kHz); (9)256fs/384fs (48kHz to 96kHz); (10)Input level: TTL/CMOS; (11)Master / Slave Mode; (12)Audio Interface: 24bit MSB justified / I2S selectable; (13)Power Supply: 4.5 to 5.5V (Analog), 2.7 to 5.5V (Digital); (14)Ta = -20 to 85℃; (15)Small 16pin TSSOP Package; (16)AK5357/58/59/81 Pin-compatible.

Diagrams

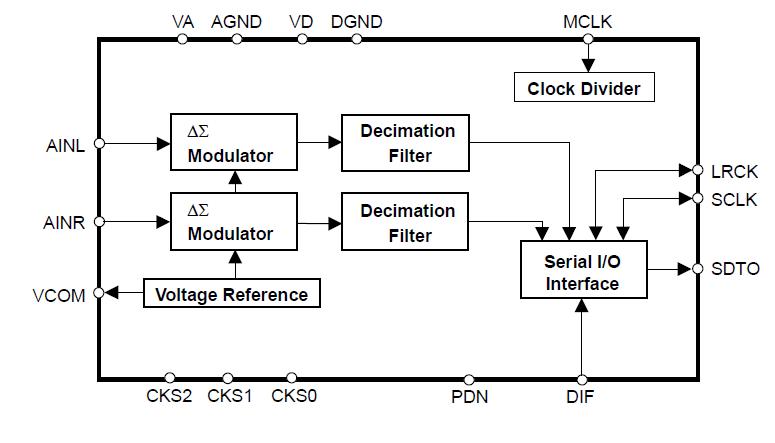

AD807A-155BR block diagram
