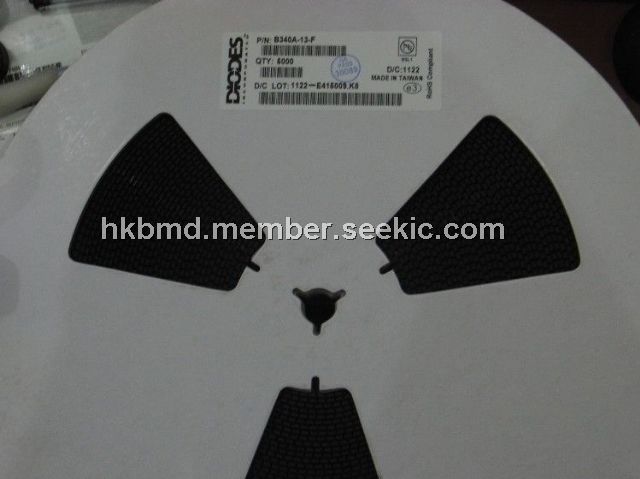

B340A-13-F

B340A-13-F, 3.0A, surface mount schottky barrier rectifier, DO, 40V, Diodes Incorporated

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.04~0.09 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.04~0.09

PartNumber:: B340A-13-F

Brand:: Diodes Incorporated - Diodes | Pack: DO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Iceble's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-19

From Other Seller

Part Number:B340A-13-F
US $0.04 - 0.09
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The B340A-13-F is a 3.0A surface mount schottky barrier rectifier.

Parametrics

B340A-13-F absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 40V; (2)Working Peak Reverse Voltage: 40V; (3)DC Blocking Voltage: 40V; (4)RMS Reverse Voltage: 28V; (5)Average Rectified Output Current @ TT = 100℃: 3A; (6)Forward Voltage @ IF = 3.0A VFM: 0.50V; (7)Peak Reverse Current @TA = 25℃: 0.5mA; (8)at Rated DC Blocking Voltage @TA = 100℃: 20mA; (9)Typical Junction Capacitance (Note 2) Cj: 250 pF; (10)Typical Thermal Resistance, Junction to Terminal (Note 1): 10℃/W; (11)Typical Thermal Resistance, Junction to Ambient: 50℃/W; (12)Operating Temperature Range TSTG: -55 to +150℃; (13)Storage Temperature Range Tj: -55 to +125℃.

Features

B340A-13-F features: (1)Guard Ring Die Construction for Transient Protection; (2)Ideally Suited for Automatic Assembly; (3)Low Power Loss, High Efficiency; (4)Surge Overload Rating to 100A Peak; (5)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application; (6)Lead Free Finish/RoHS Compliant (Note 4).
