Product Summary

The B360A-13-F is a 3.0A surface mount schottky barrier rectifier.

Parametrics

B360A-13-F absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 60V; (2)Working Peak Reverse Voltage: 60V; (3)DC Blocking Voltage: 60V; (4)RMS Reverse Voltage VR(RMS): 42 V; (5)Average Rectified Output Current @ TT = 100℃ IO: 3.0A; (6)Forward Voltage (Note 3) @ IF = 3.0A VFM: 0.70 V; (7)Peak Reverse Current @TA = 25℃: 0.5mA; (8)Typical Capacitance (Note 2) CT: 200 pF; (9)Typical Thermal Resistance, Junction to Terminal: 25℃/W; (10)Typical Thermal Resistance, Junction to Ambient: 100℃/W; (11)Operating Temperature Range Tj: -55 to +125℃; (12)Storage Temperature Range TSTG: -55 to +150℃.

Features

B360A-13-F features: (1)Guard Ring Die Construction for Transient Protection; (2)Ideally Suited for Automatic Assembly; (3)Low Power Loss, High Efficiency; (4)Surge Overload Rating to 100A Peak; (5)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application.

Diagrams

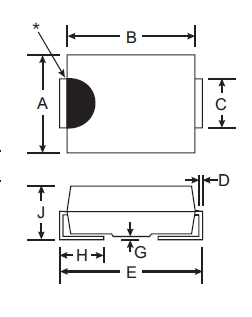

B360A-13-F dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
B360A-13-F
B360A-13-F

Diodes Inc.

Schottky (Diodes & Rectifiers) 60V 3A

Data Sheet

0-1: $0.70
1-10: $0.55
10-100: $0.42
100-250: $0.35
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
B360-13
B360-13

Diodes Inc.

Schottky (Diodes & Rectifiers) 60V 3A

Data Sheet

Negotiable
B360-13-F
B360-13-F

Diodes Inc.

Schottky (Diodes & Rectifiers) 60V 3A

Data Sheet

0-1: $0.37
1-10: $0.35
10-100: $0.34
100-250: $0.32
B360A-13-F
B360A-13-F

Diodes Inc.

Schottky (Diodes & Rectifiers) 60V 3A

Data Sheet

0-1: $0.70
1-10: $0.55
10-100: $0.42
100-250: $0.35
