Product Summary
The STPS340U is a power schottky rectifier. The STPS340U is suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in SMB, SMC and DPAK the STPS340U is intended for use in low and medium voltage operation, high frequency inverters, free wheeling and polarity protection applications where low switching losses are required.
Parametrics
STPS340U absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 40 V; (2)IF(RMS) RMS forward current DPAK: 6 A; (3)IF(AV) Average forward current Tc = 135℃ DPAK: 3A; (4)IFSM Surge non repetitive forward current: 75 A; (5)IRRM Repetitive peak reverse current: 1A; (6)Tstg Storage temperature range: - 65 to + 150℃; (7)Tj Maximum operating junction temperature: + 150℃; (8)dV/dt Critical rate of rise of reverse voltage: 10000 V/ms.
Features
STPS340U features: (1)very small conduction losses; (2)negligible switching losses; (3)low forward voltage drop; (4)low thermal resistance; (5)extremely fast switching; (6)surface mounted device.

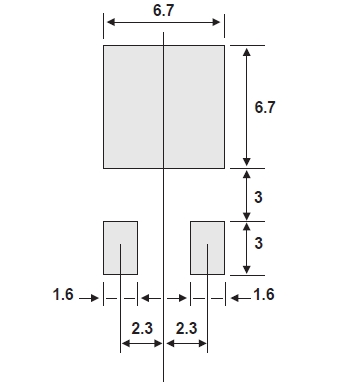

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STPS340U |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 3.0 Amp 40 Volt |
Data Sheet |
|
|
||||||||||||
|
STPS340UF |
STMicroelectronics |
Schottky (Diodes & Rectifiers) Pwr SCHOTTKY RECTIFIER |
Data Sheet |
|
|
||||||||||||
