BYM10-50

BYM10-50, surface mount glass passivated junction rectifier, DO, 50V, 1A, Vishay Telefunken

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.03~0.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.03~0.08

PartNumber:: BYM10-50

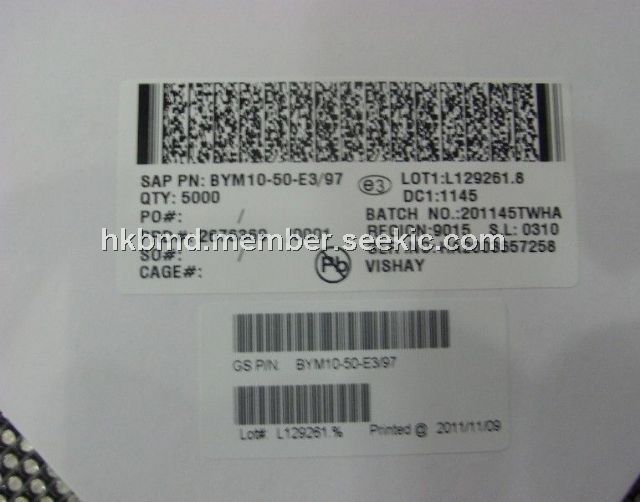

Brand:: Vishay Telefunken - Vishay | Pack: DO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Iceble's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-19

From Other Seller

Part Number:BYM10-50
US $0.03 - 0.08
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

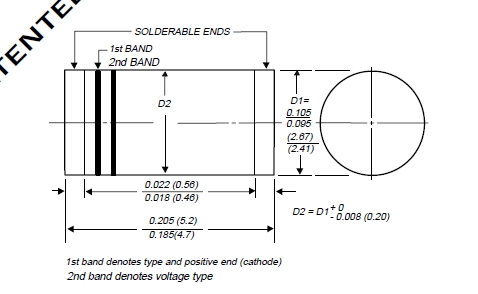

The BYM10-50 is a surface mount glass passivated junction rectifier.

Parametrics

BYM10-50 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage VRRM: 50V; (2)Maximum RMS voltage VRMS: 35V; (3)Maximum DC blocking voltage VDC: 50V; (4)Maximum average forward rectified current: 1A; (5)Maximum instantaneous forward voltage at 1.0A VF: 1.1V; (6)Maximum DC reverse current TA=25℃: 10.0μA; (7)at rated DC blocking voltage TA=125℃ IR: 50.0μA; (8)Maximum full load reverse current full cycle average at TA=75℃ IR(AV): 30.0μA; (9)Typical junction capacitance (NOTE 1) CJ: 8.0 pF; (10)Typical thermal resistance (NOTE 2): 75.0℃/W; (11)(NOTE 3) RθJT: 30.0℃/W; (12)Operating junction and storage temperature range: -65 to 175℃.

Features

BYM10-50 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)Capable of meeting environmental standards of MIL-S-19500; (3)For surface mount applications; (4)High temperature metallurgically bonded construction; (5)Glass passivated cavity-free junction; (6)High temperature soldering guaranteed: 450℃/5 seconds at terminals. Complete device submersible temperature of 265℃ for 10 seconds in solder bath.
