Product Summary

The BZT52C2V4 is a surface mount zener diode.

Parametrics

BZT52C2V4 absolute maximum ratings: (1)Forward Voltage (Note 2) @ IF=10mA : 0.9 V; (2)Power Dissipation (Note 1) : 500 mW; (3)Thermal Resistance, Junction to Ambient Air (Note 1) : 305℃/W; (4)Operating and Storage Temperature Range : -65 to +150℃.

Features

BZT52C2V4 features: (1)Planar Die Construction; (2)500mW Power Dissipation on Ceramic PCB; (3)General Purpose, Medium Current; (4)Ideally Suited for Automated Assembly Processes.

Diagrams

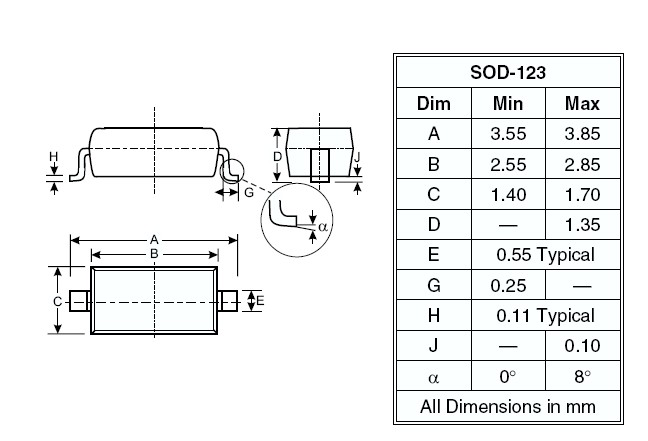

BZT52C2V4 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BZT52C2V4
BZT52C2V4

Taiwan Semiconductor

Zener Diodes 2.4 Volt 410mW 5%

Data Sheet

0-36000: $0.02
BZT52C2V4-13
BZT52C2V4-13


DIODE ZENER 2.4V 500MW SOD-123

Data Sheet

0-10000: $0.05
BZT52C2V4-13-F
BZT52C2V4-13-F

Diodes Inc.

Zener Diodes 0.9V Vf 5mA Zener 2.2V to 2.6V 500mW

Data Sheet

0-1: $0.13
1-10: $0.11
10-100: $0.06
100-250: $0.04
BZT52C2V4-7
BZT52C2V4-7

Diodes Inc.

Zener Diodes 2.4V 500mW

Data Sheet

Negotiable

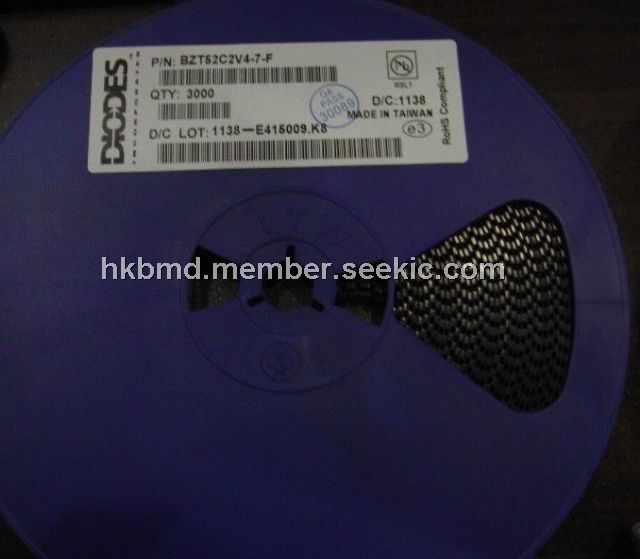

BZT52C2V4-7-F
BZT52C2V4-7-F

Diodes Inc.

Zener Diodes 2.4V 500mW

Data Sheet

0-1: $0.23
1-10: $0.15
10-100: $0.05
100-250: $0.04
BZT52C2V4-BZT52C39
BZT52C2V4-BZT52C39

Other


Data Sheet

Negotiable
BZT52C2V4LP
BZT52C2V4LP

Other


Data Sheet

Negotiable
BZT52C2V4LP-7
BZT52C2V4LP-7

Diodes Inc.

Zener Diodes 2.4V 250mW

Data Sheet

0-1: $0.34
1-10: $0.24
10-100: $0.14
100-250: $0.10
