Product Summary
The ER1D is a surface mount superfast rectifier.
Parametrics
ER1D absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 200V; (2)Maximum RMS Voltage VRMS: 140V; (3)Maximum DC Blocking Voltage VDC: 200V; (4)Maximum Average Forward Rectified Current: 10A; (5)Maximum Instantaneous Forward Voltage at 1.0A: 0.95V; (6)Maximum Reverse Recovery Time: 35ns; (7)Typical Junction capacitance: 10pF; (8)Typical Thermal Resistance: 34℃/W; (9)Operating and Storage Temperature Range: -50 to 150℃.
Features
ER1D features: (1)For surface mounted applications; (2)Low profile package; (3)Built-in strain relief; (4)Easy pick and place; (5)Superfast recovery times for high efficiency; (6)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (7)Glass passivated junction; (8)High temperature soldering: 260℃/10 seconds at terminals.

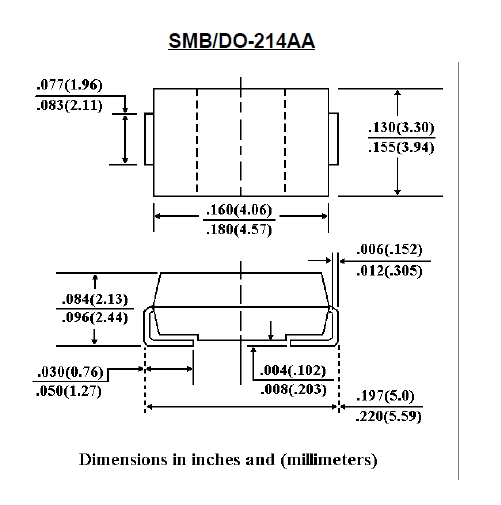

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ER1D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
ER1D-LTP |
|
DIODE SUPER FAST 1A 200V SMB |
Data Sheet |
|
|
||||||||||||||||
