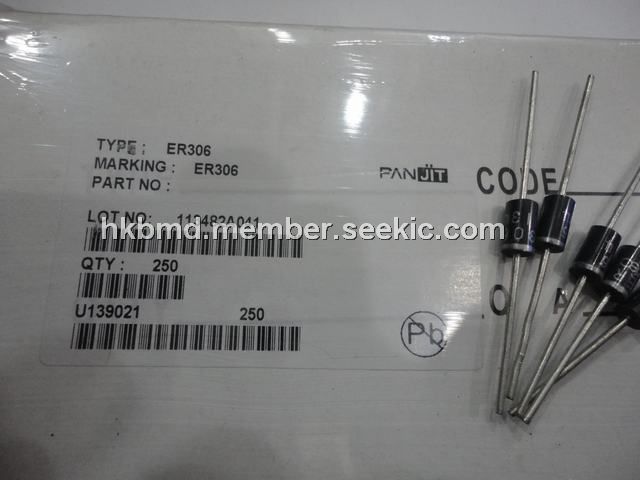

The ER306 is a superfast recovery rectifier.
Parametrics
ER306 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 600V; (2)Maximum RMS Voltage: 420V; (3)Maximum DC Blocking Voltage: 600V ; (4)Maximum Average Forward Current .375" (9.5mm) lead length at TA=55&℃: 3.0A; (5)Peak Forward Surge Current, IFM (surge): 125A; (6)8.3ms single half sine-wave superimposed on rated load(JEDEC method): 1.7V; (7)Maximum Forward Voltage at 3.0A DC: 1.7V; (8)Maximum DC Reverse Current at Rated DC Blocking Voltage: 5.0A ; (9)Maximum DC Reverse Current at Rated DC Blocking Voltage TA=125℃: 300A& ; (10)Maximum Reverse Recovery Time(Note 1): 35ns; (11)Typical Junction capacitance (Note 2): 35pF; (12)Typical Junction Resistance(Note 3) R&JA: 20pF; (13)Operating and Storage Temperature Range TJ: -55 to +150℃.
Features
ER306 features: (1)Superfast recovery times-epitaxial construction; (2)Low forward voltage, high current capability; (3)Exceeds environmental standards of MIL-S-19500/228; (4)Hermetically sealed; (5)Low leakage; (6)High surge capability; (7)Plastic package has Underwriters Laboratories;
