Product Summary

The ES1G is a surface mount superfast rectifier.

Parametrics

ES1G absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage VRRM: 400V; (2)Maximum RMS Voltage VRMS: 280V; (3)Maximum DC Blocking Voltage VDC: 400V; (4)Maximum Average Forward Rectified Current, at TL=120℃: 1.0A; (5)Peak Forward Surge Current 8.3ms single half sinewave superimposed on rated load(JEDEC method): 30.0A; (6)Maximum DC Reverse Current TA=25℃: 5A; (7)At Rated DC Blocking Voltage TA=100℃: 100A; (8)Maximum Reverse Recovery Time (Note 1) TRR: 35.0nS; (9)Typical Junction capacitance: 10pF; (10)Typical Thermal Resistance (Note 3) RθKJL: 35℃/W; (11)Operating and Storage Temperature Range: -50 to 150℃.

Features

ES1G features: (1)For surface mounted applications; (2)Low profile package; (3)Built-in strain relief; (4)Easy pick and place; (5)Superfast recovery times for high efficiency; (6)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (7)Glass passivated junction; (8)High temperature soldering: 260℃/10 seconds at terminals.

Diagrams

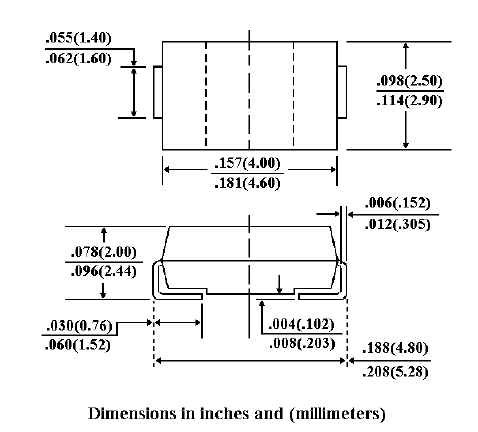

ES1G dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ES1G
ES1G
Fairchild Semiconductor
Rectifiers 1.0 A Ultra Fast Recovery Rect
Data Sheet
0-1: $0.32
1-25: $0.23
25-100: $0.14
100-250: $0.10
ES1G-13
ES1G-13
Diodes Inc.
Rectifiers 1.0A 400V
Data Sheet
Negotiable
ES1G-13-F
ES1G-13-F
Diodes Inc.
Rectifiers 1.0A 400V
Data Sheet
0-1: $0.32
1-10: $0.26
10-100: $0.18
100-250: $0.15
ES1GL
ES1GL
Taiwan Semiconductor
Rectifiers 1A 400V
Data Sheet
0-1: $0.12
1-100: $0.09
100-500: $0.08
500-1000: $0.07
ES1G-T
ES1G-T
Micro Commercial Components (MCC)
Rectifiers super fast 1.0A 400V
Data Sheet
Negotiable
ES1G-TP
ES1G-TP
Micro Commercial Components (MCC)
Rectifiers super fast 1.0A 400V
Data Sheet
0-1: $0.26
1-10: $0.18
10-100: $0.11
100-250: $0.09
