Product Summary
The GL41M is a surface mount glass passivated junction rectifier.
Parametrics
GL41M absolute maximum ratings: (1)Maximum repetitive peak reverse voltage VRRM: 1000V; (2)Maximum RMS voltage VRMS: 700V; (3)Maximum DC blocking voltage VDC: 1000V; (4)Maximum average forward rectified current at TL=125℃ I(AV): 1.0 Amp; (5)Maximum instantaneous forward voltage at 1.0A VF: 1.2V; (6)Maximum DC reverse current TA=25℃: 10μA; (7)at rated DC blocking voltage TA=125℃ IR: 50.0μA; (8)Typical junction capacitance: 8pF; (9) Operating junction and storage temperature range TJ, TSTG: -65 to +175℃.
Features
GL41M features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)Capable of meeting environmental standards of MIL-S-19500; (3)For surface mount applications; (4)High temperature metallurgically bonded construction; (5)Glass passivated cavity-free junction; (6)High temperature soldering guaranteed: 450℃/5 seconds at terminals. Complete device submersible temperature of 265°C for 10 seconds in solder bath.

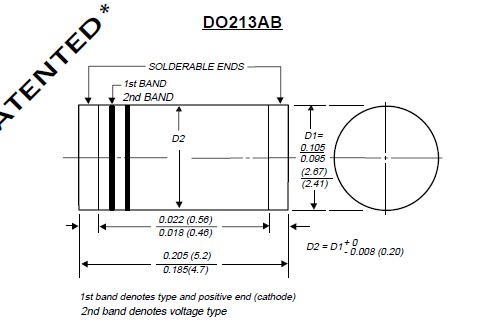

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GL41M |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
GL41M/1 |
Vishay Semiconductors |
Rectifiers 1 Amp 1000 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||
|
GL41M/25 |
Vishay Semiconductors |
Rectifiers 1 Amp 1000 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||
|
GL41M/26 |
Vishay Semiconductors |
Rectifiers 1 Amp 1000 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||
|
GL41M/46 |
Vishay Semiconductors |
Rectifiers 1 Amp 1000 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||
|
GL41M/51 |
Vishay Semiconductors |
Rectifiers 1 Amp 1000 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||
 |
GL41M/54 |
|
RECTIFIER 1000V 1A DO213AB SMD |
Data Sheet |
|
|
||||||
|
GL41M/75 |
Vishay Semiconductors |
Rectifiers 1 Amp 1000 Volt 30 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||
