Product Summary

The MBR3045PT is a schottky rectifier.

Parametrics

MBR3045PT absolute maximum ratings: (1) Maximum Repetitive Reverse Voltage : 45V; (2) Average Rectified Forward Current : 30A; (3) Non-repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave : 200A; (4) Storage Temperature Range : -65 to 175℃; (5) Operating Junction Temperature : -65 to 150℃.

Features

MBR3045PT features: (1)Low power loss, high efficiency; (2)High surge capacity; (3)For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications; (4)Metal silicon junction, majority carrier conduction; (5)High current capacity, low forward voltage drop; (6)Guard ring for over voltage protection.

Diagrams

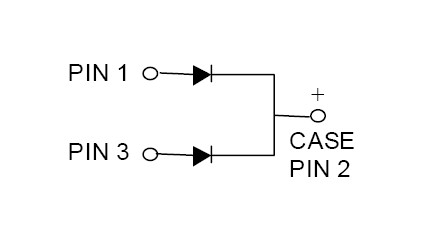

MBR3045PT Pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBR3045PT
MBR3045PT
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 31 amp Rectifiers Schottky Barrier
Data Sheet
0-1: $1.02
1-25: $0.91
25-100: $0.82
100-250: $0.73
MBR3045PT/45
MBR3045PT/45
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 30 Amp 45 Volt
Data Sheet
Negotiable
MBR3045PT-E3/45
MBR3045PT-E3/45
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 30 Amp 45 Volt
Data Sheet
0-1: $1.34
1-25: $1.22
25-100: $1.10
100-200: $0.92
MBR3045PTG
MBR3045PTG
ON Semiconductor
Schottky (Diodes & Rectifiers) 30A 45V
Data Sheet
0-1: $1.75
1-25: $1.41
25-100: $1.13
100-500: $0.99
MBR3045PT_Q
MBR3045PT_Q
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 31 amp Rectifiers Schottky Barrier
Data Sheet
Negotiable
