Product Summary
The MT46H16M16LF is a Mobile Double Data Rate (DDR) SDRAM.
Parametrics
MT46H16M16LF absolute maximum ratings: (1)VDD/VDDQ: 1.8V/1.8V H; (2)Configuration: 16 Meg x 16 (4 Meg x 16 x 4 banks) 16M16; (3)8 Meg x 32 (2 Meg x 32 x 4 banks) 8M32; (4)Plastic Package: 60-Ball VFBGA1, 90-Ball VFBGA 2; (5)TBD; (6)Timing-Cycle Time 6ns @ CL = 3: -6; (7)7.5ns @ CL =3: -75; (8)10ns @ CL = 3: -10; (9)Operating Temperature Range Commercial (0℃to +70℃); (10)Industrial: -40℃ to +85℃.
Features
MT46H16M16LF features: (1)VDD = +1.8V ±0.1V, VDDQ = +1.8V ±0.1V; (2)Bidirectional data strobe per byte of data (DQS); (3)Internal, pipelined double data rate (DDR) architecture; two data accesses per clock cycle; (4)Differential clock inputs (CK and CK#); (5)Commands entered on each positive CK edge; (6)DQS edge-aligned with data for READs; centeraligned with data for WRITEs; (7)Four internal banks for concurrent operation; (8)Data masks (DM) for masking write data-one mask per byte; (9)Programmable burst lengths: 2, 4, 8, 16 or full page; (10)Concurrent auto precharge option is supported; (11)Auto refresh and self refresh modes; (12)1.8V LVCMOS compatible inputs; (13)On-chip temperature sensor to control refresh rate; (14)Partial array self refresh (PASR); (15)Deep power-down (DPD); (16)Selectable output drive (DS); (17)Clock stop capability.

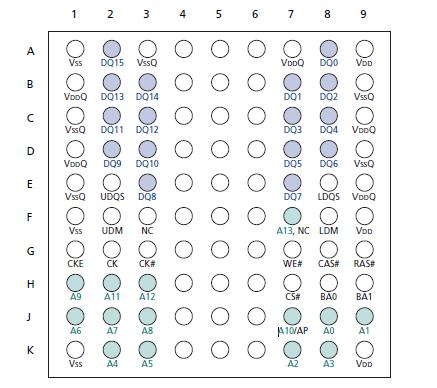

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MT46H16M16LF 4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
MT46H16M16LFBF-5 IT:H |
|
IC DDR SDRAM 256MBIT 60VFBGA |
Data Sheet |
|
|
||||||
|
MT46H16M16LFBF-5 IT:H TR |
|
IC DDR SDRAM 256MBIT 60VFBGA |
Data Sheet |
|
|
||||||
|
MT46H16M16LFBF-5:H TR |
|
IC DDR SDRAM 256MBIT 60VFBGA |
Data Sheet |
|
|
||||||
|
MT46H16M16LFBF-5:H |
|
IC DDR SDRAM 256MBIT 60VFBGA |
Data Sheet |
|
|
||||||
|
MT46H16M16LFBF-6 AT:H |
|
IC DDR SDRAM 256MBIT 60VFBGA |
Data Sheet |
|
|
||||||
|
MT46H16M16LFBF-6 IT:H |
|
IC SDRAM 256MB 166MHZ 60VFBGA |
Data Sheet |
|
|
||||||
 |
MT46H16M16LFBF-6:A TR |
|
IC DDR SDRAM 256MBIT 60VFBGA |
Data Sheet |
Negotiable |
|
||||||
