Product Summary

The MURA105T3G is a surface mount ultrafast power rectifier. The MURA105T3G is ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.

Parametrics

MURA105T3G absolute maximum ratings: (1) DC Blocking Voltage : 50 V; (2) Average Rectified Forward Current @ TL = 155℃ : 1.0 A; (3) Non-Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) : 50A; (4) Operating Junction Temperature Range : -65 to +175 ℃.

Features

MURA105T3G features: (1)Small Compact Surface Mountable Package with J-Bend Leads; (2)Rectangular Package for Automated Handling; (3)High Temperature Glass Passivated Junction; (4)Low Forward Voltage Drop (0.66 Volts Max @ 1.0 A, TJ = 150℃).

Diagrams

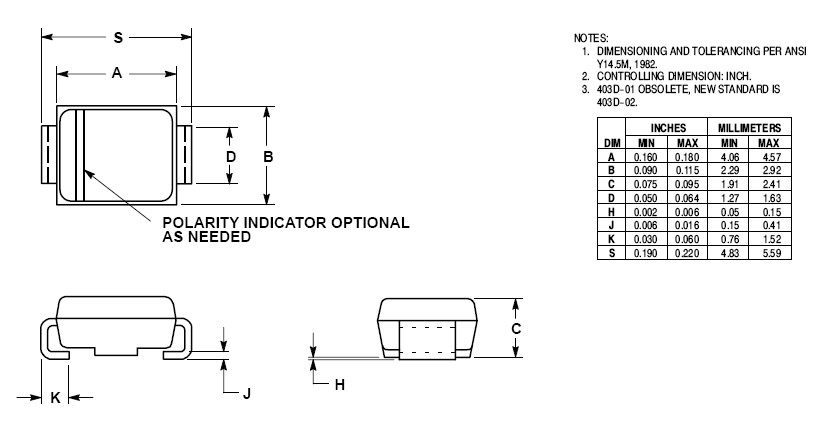

MURA105T3G dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

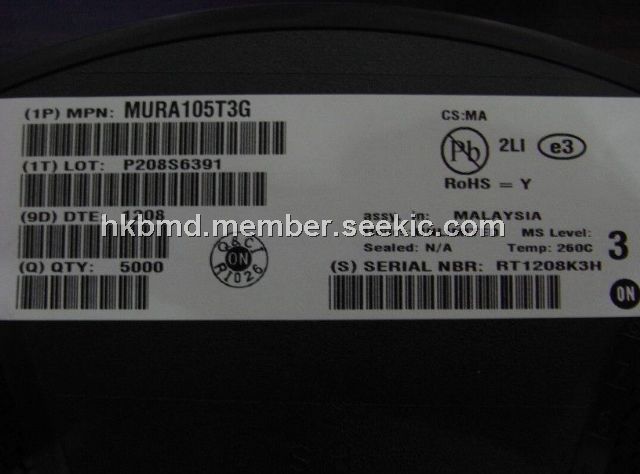

MURA105T3G
MURA105T3G

ON Semiconductor

Rectifiers 50V 1A UltraFast

Data Sheet

0-1: $0.25
1-25: $0.21
25-100: $0.14
100-500: $0.11
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MURA105T3
MURA105T3

ON Semiconductor

Rectifiers 50V 1A UltraFast

Data Sheet

Negotiable
MURA105T3G
MURA105T3G

ON Semiconductor

Rectifiers 50V 1A UltraFast

Data Sheet

0-1: $0.25
1-25: $0.21
25-100: $0.14
100-500: $0.11
MURA110T3
MURA110T3

ON Semiconductor

Rectifiers 100V 1A UltraFast

Data Sheet

Negotiable
MURA110T3G
MURA110T3G

ON Semiconductor

Rectifiers 100V 1A UltraFast

Data Sheet

0-1: $0.32
1-25: $0.21
25-100: $0.17
100-500: $0.11
MURA115T3
MURA115T3

ON Semiconductor

Rectifiers 150V 1A UltraFast

Data Sheet

Negotiable
MURA115T3G
MURA115T3G

ON Semiconductor

Rectifiers 150V 1A UltraFast

Data Sheet

0-1: $0.35
1-25: $0.23
25-100: $0.15
100-500: $0.13
