Product Summary

The P6SMB18CA-E3 is a Surface Mount Transient Voltage Suppressor.

Parametrics

P6SMB18CA-E3 absolute maximum ratings: (1)Peak Power Dissipation at TA=25℃, Tp=1ms(Note 1) PPK: Minimum 600 Watts; (2)Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) (Note 2, 3) - Unidirectional Only IFSM: 100 Amps; (3)Maximum Instantaneous Forward Voltage at 50.0A for Unidirectional Only (Note 4) VF: 3.5 Volts; (4)Operating and Storage Temperature Range TJ, TSTG: -65 to + 150℃.

Features

P6SMB18CA-E3 features: (1)For surface mounted application in order to optimize board space; (2)Low profile package; (3)Built-in strain relief; (4)Glass passivated junction; (5)Excellent clamping capability; (6)Fast response time: Typically less than 1.0ps from 0 volt to BV min; (7)Typical IR less than 1μA above 10V; (8)High temperature soldering guaranteed: 250℃/10 seconds at terminals; (9)Plastic material used carries Underwriters Laboratory Flammability Classification 94V-0; (10)600 watts peak pulse power capability with a 10 x 1000 us waveform by 0.01% duty cycle.

Diagrams

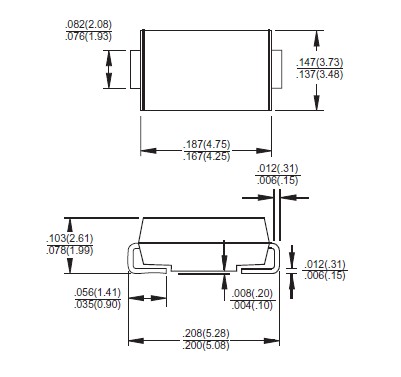

P6SMB18CA-E3 dimension
