Product Summary

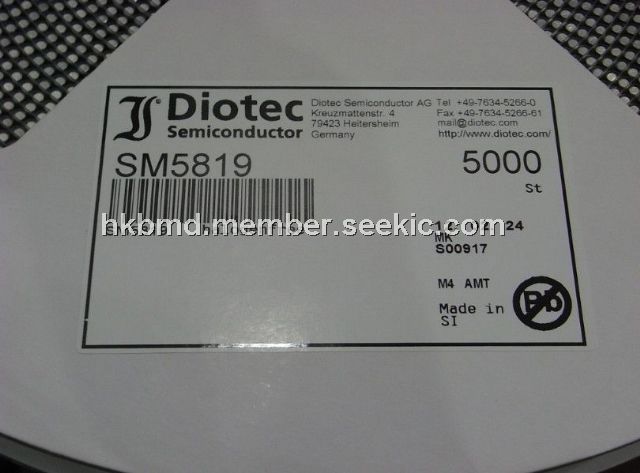

The SM5819 is a surface mount schottky barrier rectifier.
Parametrics
SM5819 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 40V; (2)Maximum RMS Voltage: 28V; (3)Maximum DC Blocking Voltage: 40V; (4)Maximum Average Forward Rectified Current at TA=90℃: 1A; (5)Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method): 25A; (6)Typical Thermal Resistance (Note) 1: 80℃/W; (7)Typical Junction Capacitance (Note 2): 110pF; (8)Storage Operating Temperature Range: -65 to 125℃.
Features
SM5819 features: (1)Fast switching; (2)Glass passivated device; (3)Ideal for surface mounted applications; (4)Low leakage current; (5)Metallurgically bonded construction; (6)Mounting position: Any; (7)Weight: 0.015 gram.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SM5819 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SM5819A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SM5819HQF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SM5819S |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SM5819-W |
Rectron |
Schottky (Diodes & Rectifiers) 1A 40V Schottky |
Data Sheet |
Negotiable |
|
||||||||||||
 |
SM5819PL-TP |
Micro Commercial Components (MCC) |
Rectifiers Standard 40V 1A |
Data Sheet |
|
|
||||||||||||
