Product Summary
The SS34 is a surface mount schottky barrier rectifier.
Parametrics
SS34 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage: 40V; (2)Maximum average forward rectified current: 28V; (3)Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method): 100A; (4)Maximum instantaneous forward voltage at 3.0 A (NOTE 1): 0.5V; (5)Maximum DC reverse current at rated DC blocking voltage (NOTE 1); (6)TA=25℃: 0.5mA; (7)Typical thermal resistance (NOTE 2): 55℃/W; (8)Storage temperature range: -55 to 150℃; (9)Operating junction temperature range: -55 to 150℃.
Features
SS34 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)For surface mount applications; (3)Low profile package; (4)Built-in strain relief; (5)Metal sillicon junction, majority carrier conduction; (6)Low power loss, high efficiency; (7)High current capability, low forward voltage drop; (8)High surge capability; (9)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (10)Guardring for overvoltage protection; (11)High temperature soldering guaranteed : 260℃/10 seconds, at terminals.

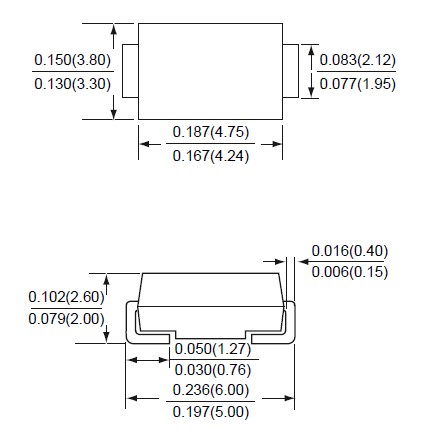

Diagrams
