Product Summary
The UH8JT is a low-power integrated Hall switch designed to sense the applied magnetic flux density and give a digital output, which indicates the present condition of the magnitude sensed. The UH8JT is mainly designed for battery-powered system and hand-held equipment, such as cellular flip-phones, in which power consumption is one major concern. The typical power consumption of the UH8JT is down to 15uW at 2.75V supply. For the UH8JT, the output will be high when no magnetic field is applied and be low when the applied magnetic flux density is stronger than the switching threshold.
Parametrics
UH8JT absolute maximum ratings: (1)Magnetic Flux Density : Unlimited mT; (2)Supply Voltage : 7 V; (3)Output Current : 10 mA; (4)Package Power Dissipation : 230 mW; (5)Junction Temperature : 150 ℃; (6)Operation Temperature : -40 to +85 ℃; (7)Storage Temperature : -65 to +150 ℃.
Features
UH8JT features: (1)Micro power Operation; (2)2.5V to 5.5V Battery Operation; (3)Offset Canceling Technology; (4)Superior Temperature Stability; (5)Extremely Low Switch-Point Drift; (6)Insensitive to Physical Stress

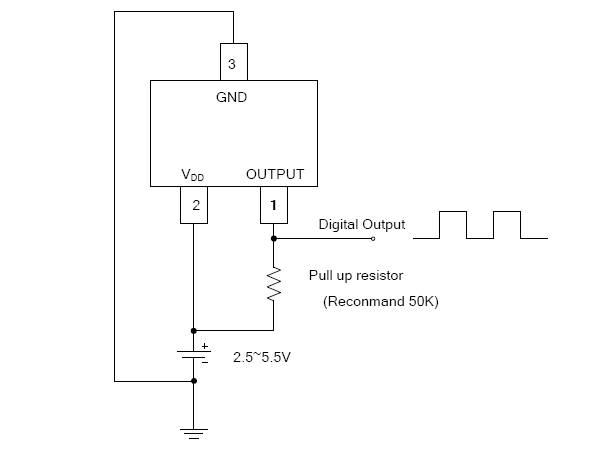

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

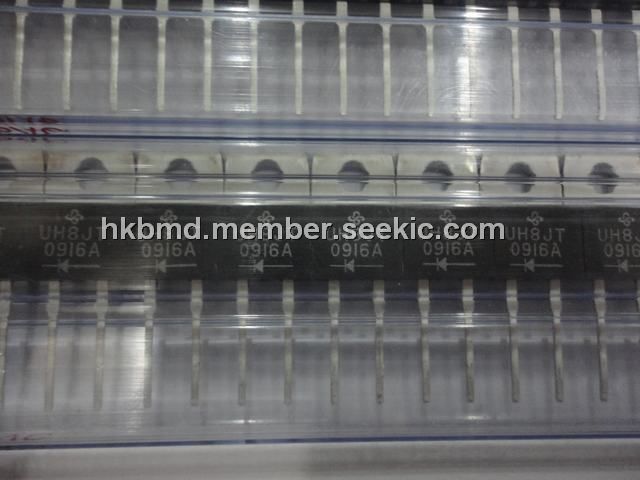

 UH8JT-E3/45 |
Vishay Semiconductors |
Rectifiers 600 Volt 8.0A 25ns 80 Amp IFSM |
Data Sheet |
|
|
||||||||||||
 |
UH8JT |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
